ETFE installation follows a specialist sequence: structure acceptance, module delivery, fixing, tension or inflation, and handover.
ETFE installation process
Construction
12 min read
Updated July 2026
ETFE Installation Process — Site Delivery Sequence
ETFE installation is a controlled sequence — structure acceptance, module setting, weather sealing and cushion commissioning — often faster than heavy glazing when prefabrication is planned well.

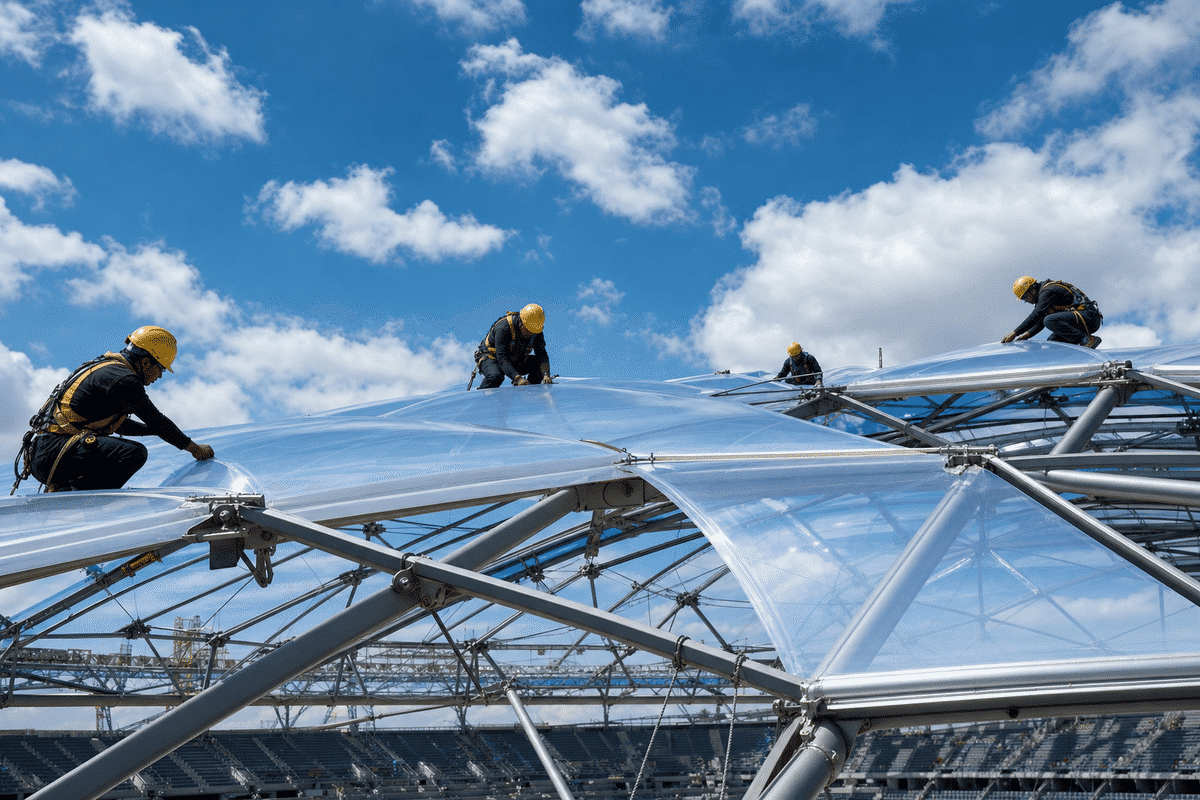

Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Installation Process
From site readiness checks through tensioning or cushion fixing to inflation commissioning, this guide maps the installation phases AAKS follows and the interfaces that most often affect programme and quality.
Engineering overview
Quality checkpoints include material verification, seam inspection, pressure or tension confirmation and watertightness review.
Industry importance
Prefabricated cushions often shorten on-site duration versus complex glazing — programme varies by area and access.
Engineering
From Structure Readiness to Commissioning
Turnkey delivery spans design, fabrication, installation and commissioning with coordinated trades.
Detailed explanation
Primary structure tolerances, weather windows and protection of installed foils are critical success factors.
Working principle
Controlled inflation commissioning calibrates sensors, tests redundancy and delivers O&M documentation for cushion systems.
Engineering concepts
See ETFE construction knowledge for full end-to-end process alignment with AAKS delivery models.
Specifications
Installation Phase Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Installation Process | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE installation process early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Installation Process supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE installation process understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE installation process prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE installation process outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2

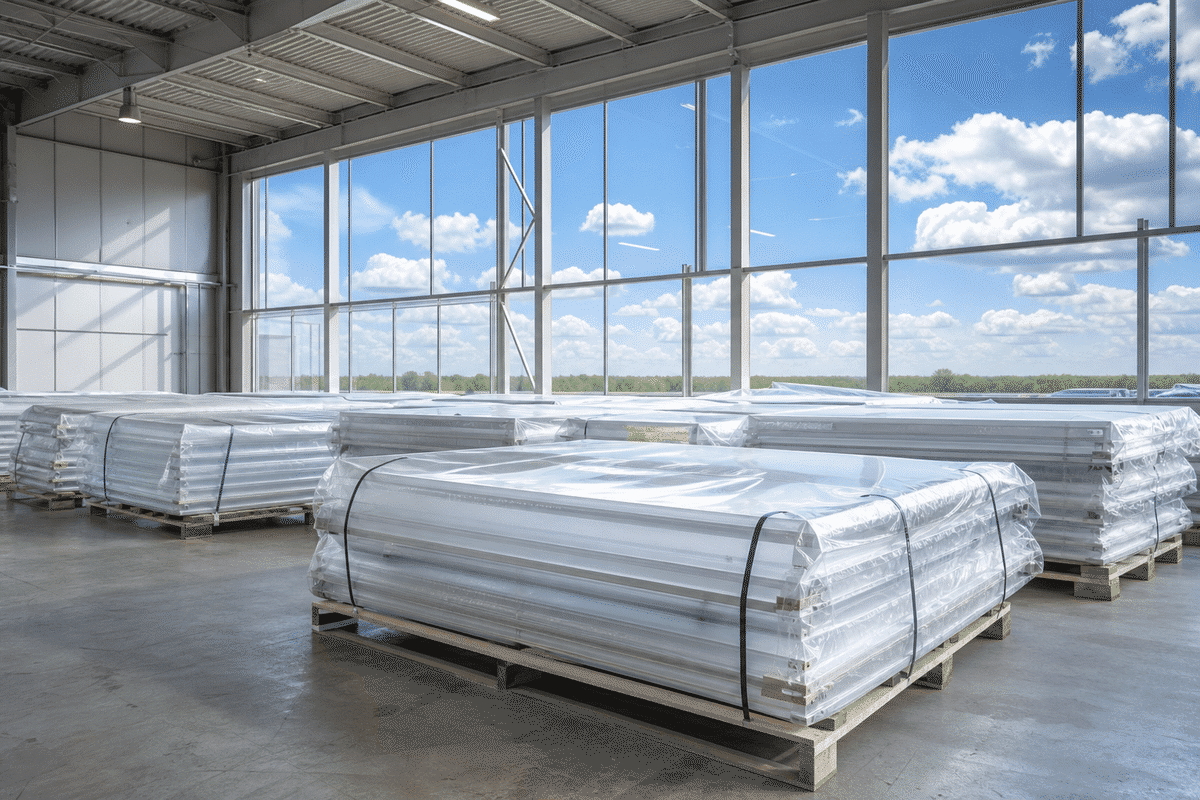

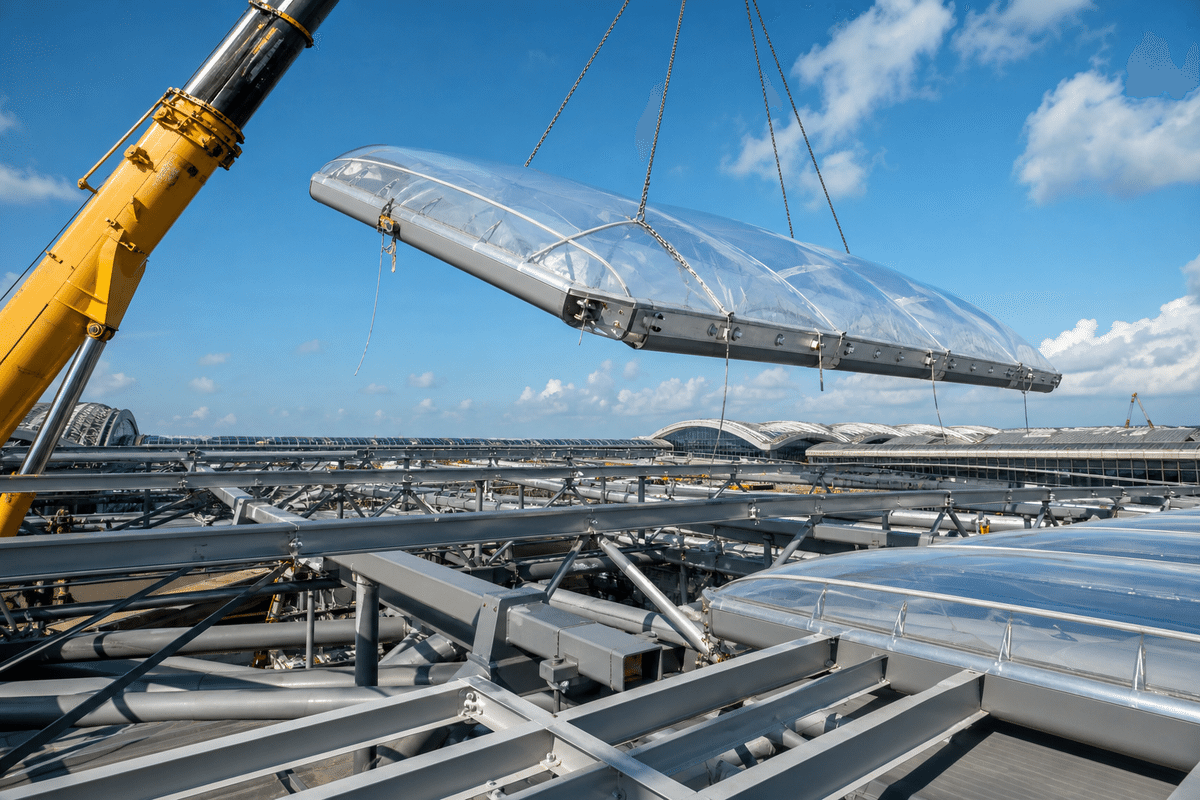

Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3

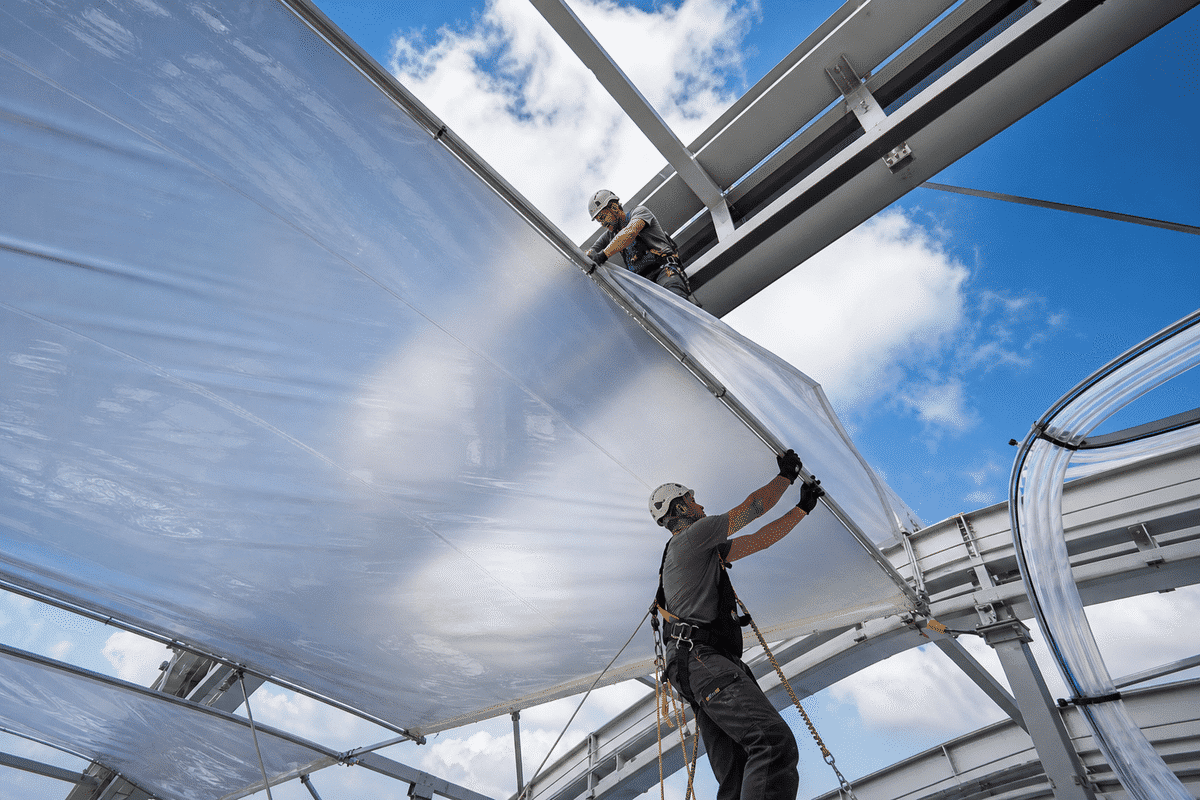

Fixing & sealing

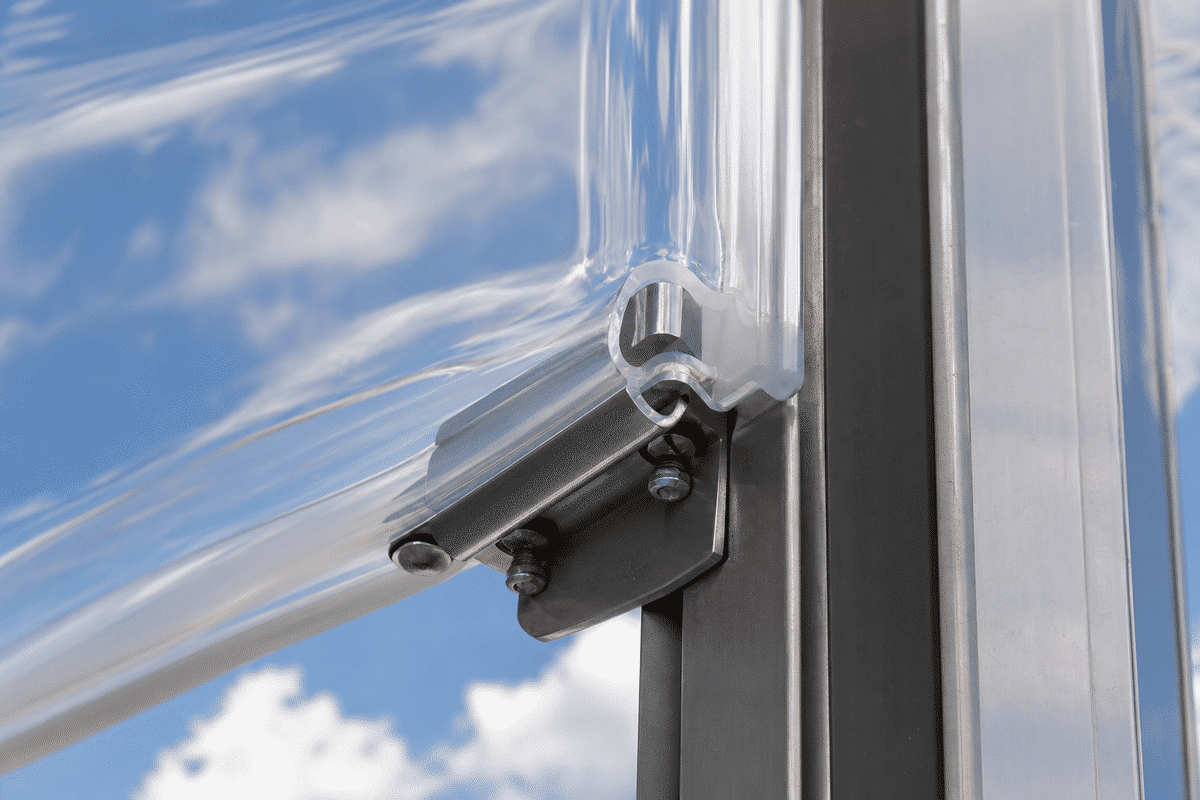

Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5

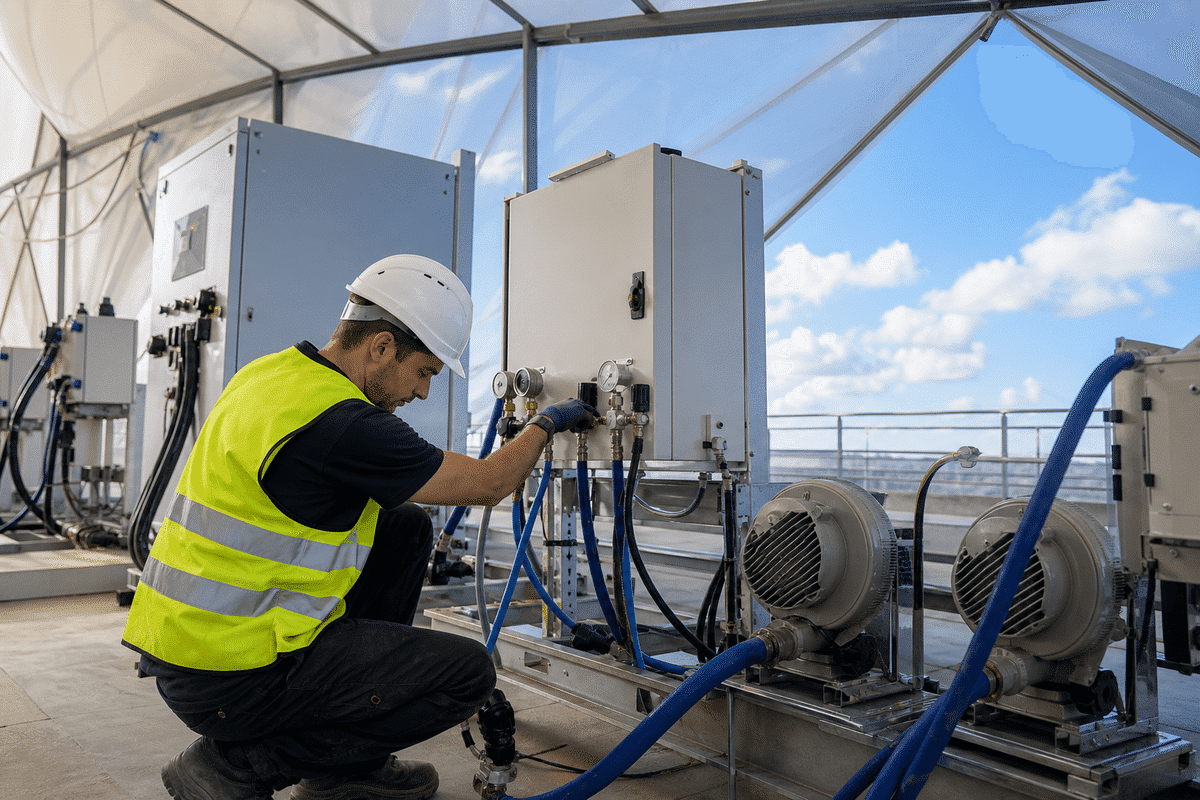

Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes

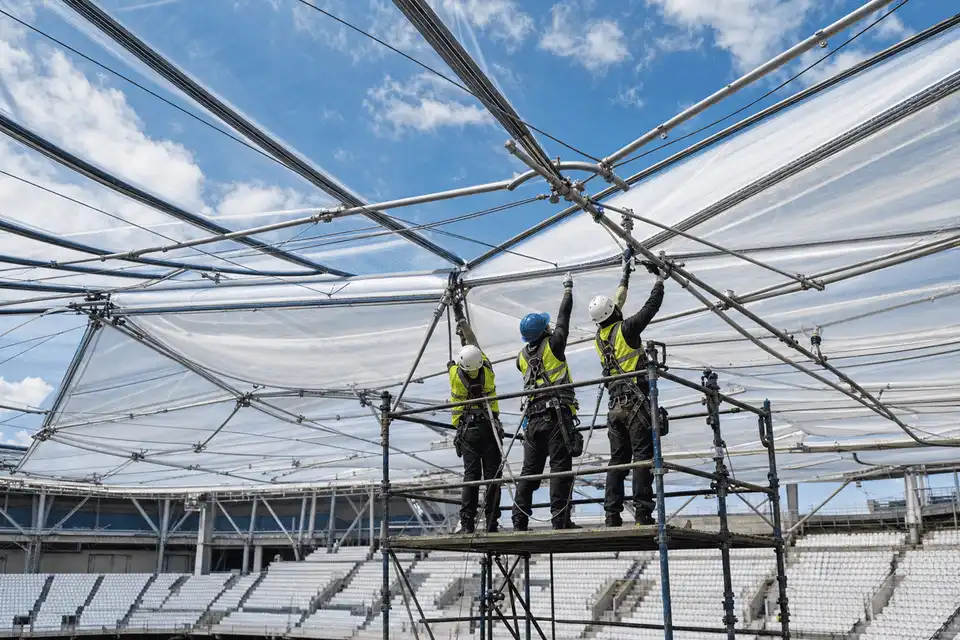

Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE installation process benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE installation process follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

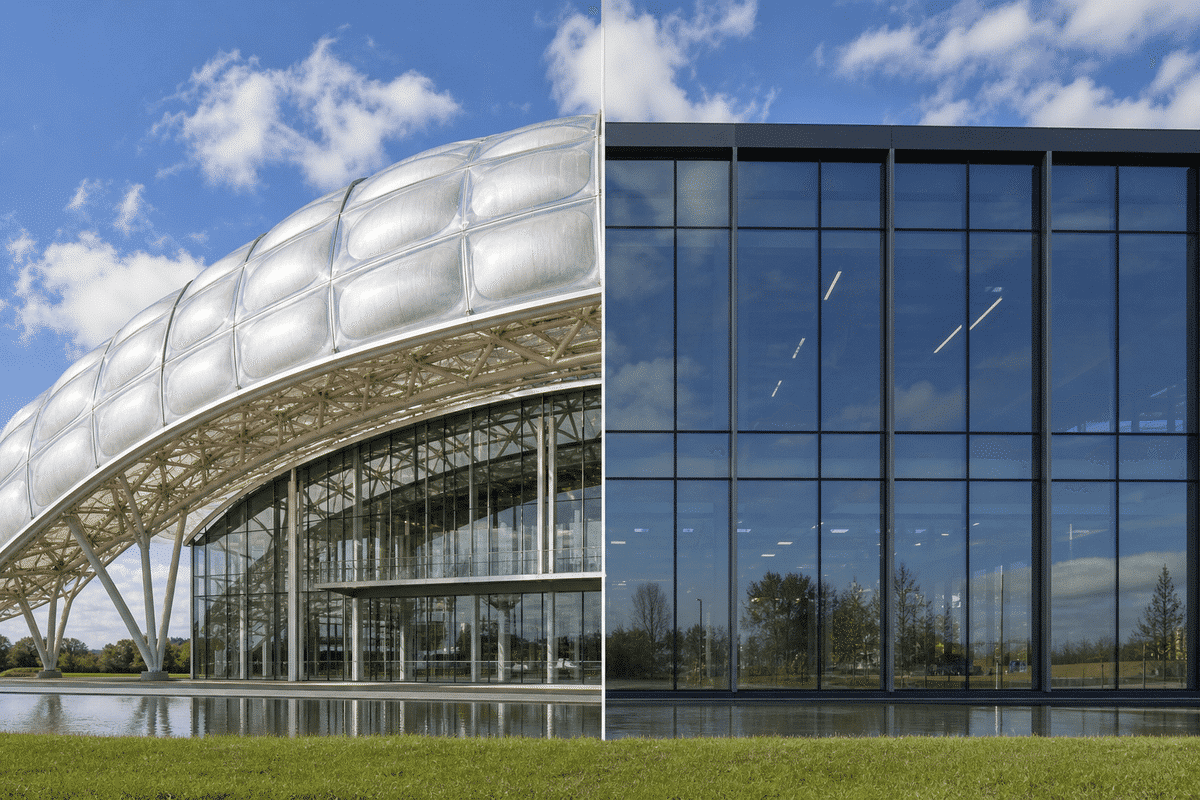

ETFE install vs Glazing install
Qualitative comparison for ETFE installation process — confirm project-specific test data before specification.
| Criteria | ETFE install | Glazing install |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What must be complete before ETFE installation starts?
Primary structure tolerance checks, fall protection, weather protection strategy and interface waterproofing readiness — substrate acceptance is a formal checkpoint.
Is ETFE installed as prefabricated modules?
Cushions and tensioned panels are typically factory fabricated then installed on site, improving dimensional accuracy and shortening open-roof duration.
How long does on-site installation take?
Programme varies with area, access, structure readiness and system type. Prefabrication often shortens site duration versus complex glazing — schedules follow project briefing.
What weather risks affect installation?
Open-roof work still depends on weather windows. Temporary protection and sequencing protect foils from construction damage.
How are foils protected during construction?
Detailing must protect foils from trades, sharp tools and accumulated debris — damage control is part of the install method statement.
What happens at cushion commissioning?
Controlled inflation to design pressure, sensor calibration, redundancy tests and handover training follow mechanical installation.
Who coordinates with other trades on site?
The ETFE install team interfaces with steel, MEP, glazing and waterproofing contractors on sequencing and tolerance.
Are specialist installers required?
ETFE is a specialist membrane discipline. Trained teams manage tensioning, welding repairs and inflation safely at height.
What quality checks occur during install?
Seam and clamp inspection, pressure or tension verification, and watertightness reviews are logged before handover.
Can installation proceed before inflation equipment is ready?
Mechanical fixing can advance, but cushion roofs need power and controls ready for commissioning — coordinated in the programme.
How is disruption managed in occupied buildings?
Phasing, night works or temporary covers may be planned for retrofits — scope follows access and safety constraints.
How do I request an install programme estimate?
Share drawings, site logistics and target dates via contact-us.html for a project schedule discussion.
