ETFE Structural Design — Primary Structure & Membrane

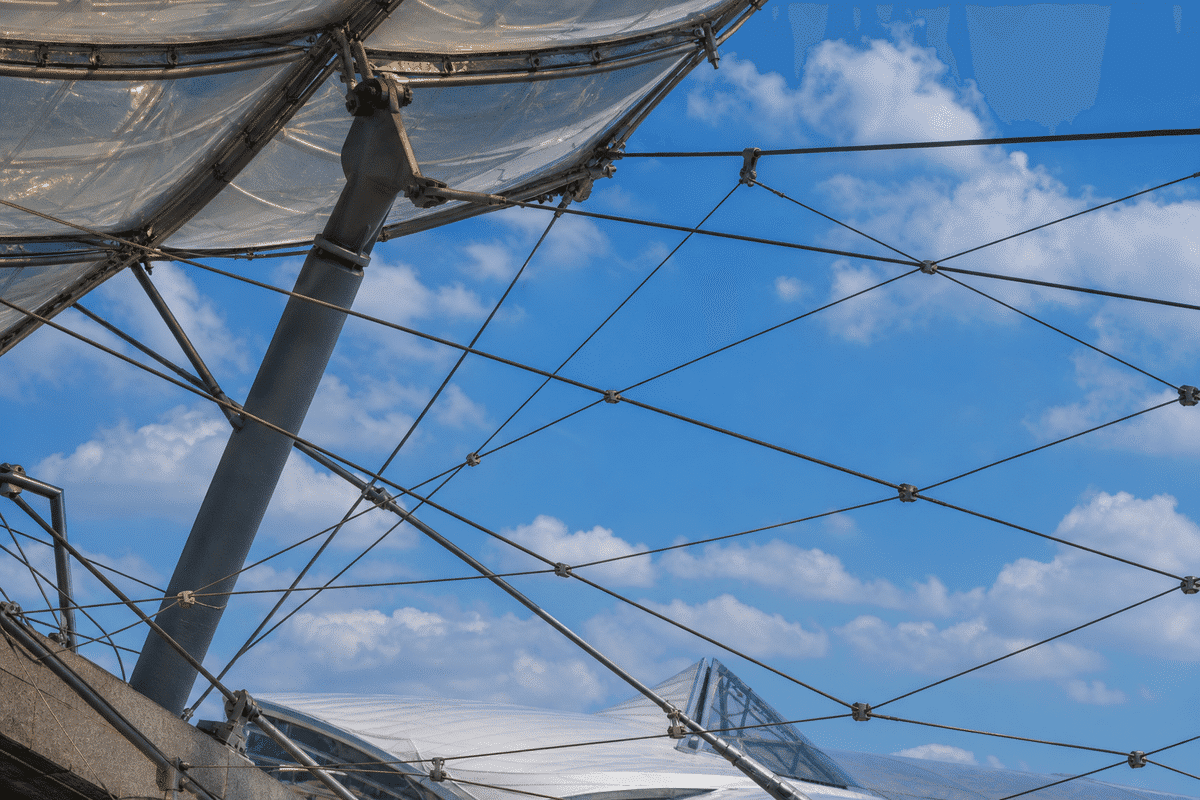

ETFE works as a tensile membrane on steel or aluminium grids, cable nets and arches — wind, snow and prestress define foil patterning and primary member sizing.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Structural Design
Structural design for ETFE integrates primary frame engineering with membrane tension or cushion pressure. Learn how load paths, support spacing and edge clamps form one coordinated system.
Engineering overview
Wind, snow, maintenance loads and drift limits size members and clamp layouts — film carries tension, structure carries global loads.
Industry importance
Iconic long-span roofs at airports and stadia depend on efficient grids enabling luminous ETFE fields.
Engineering
Grids, Cables & Cushion Geometry
Structural and membrane design are inseparable — early integration avoids costly rework.
Detailed explanation
Cable nets, arches and flat grids each imply different patterning, drainage and access strategies.
Working principle
Module geometry follows structural bay sizes while accommodating thermal movement and replacement access.
Engineering concepts
Coordinate fall protection anchorage and maintenance walkways without damaging installed foils.
Specifications
Structural Design Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Structural Design | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE structural design early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Structural Design supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE structural design understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE structural design prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE structural design outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE structural design benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE structural design follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

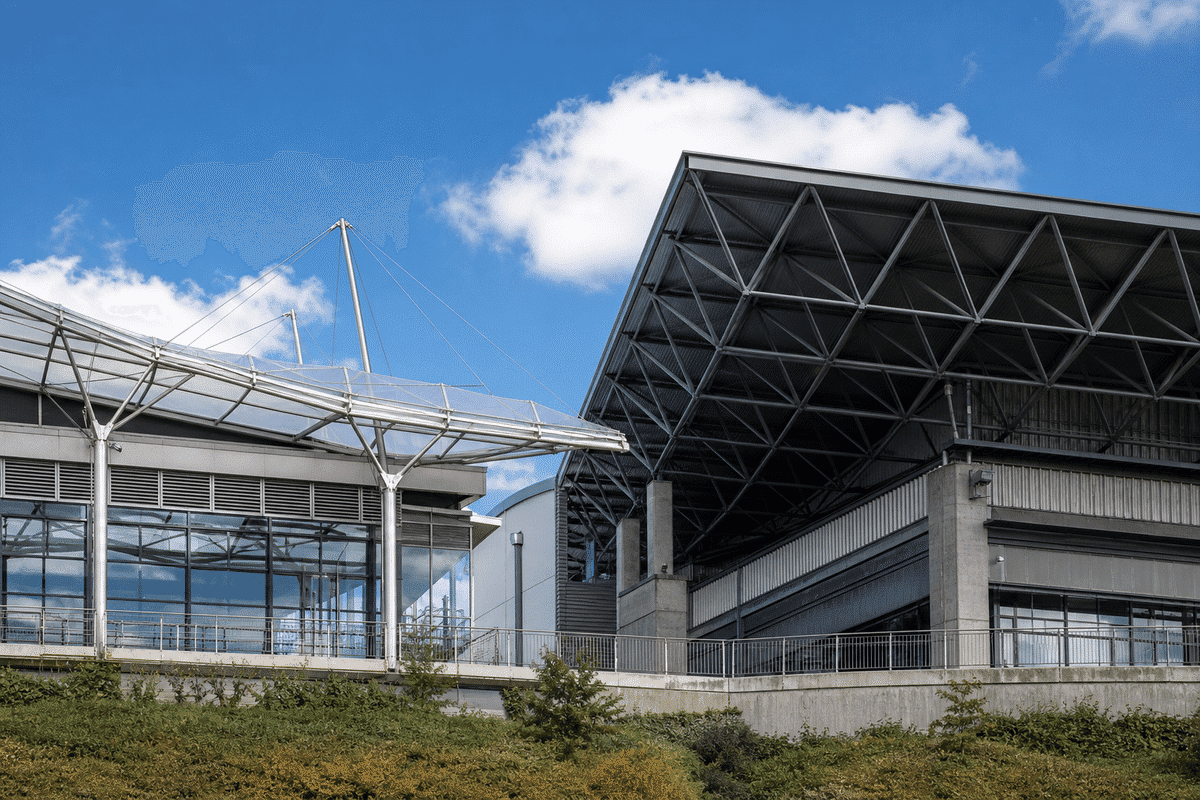

ETFE primary structure vs Glazing support frame
Qualitative comparison for ETFE structural design — confirm project-specific test data before specification.
| Criteria | ETFE primary structure | Glazing support frame |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals

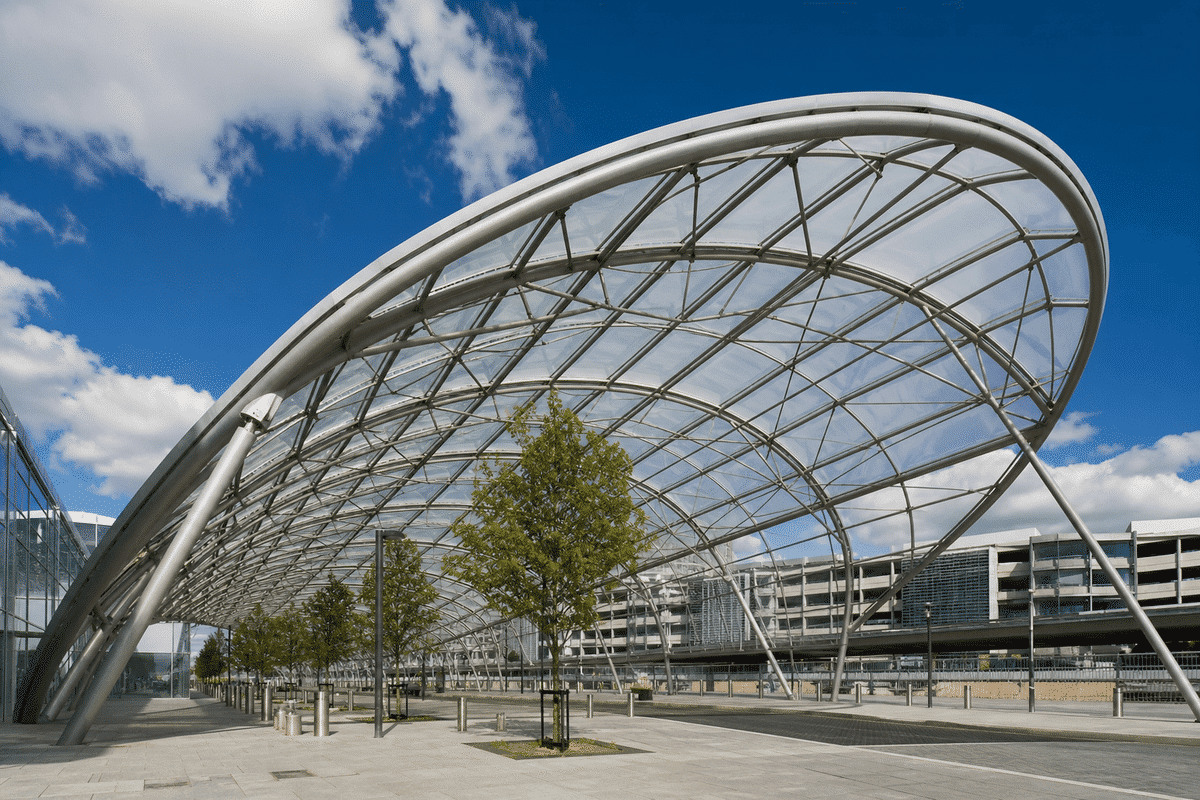

Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What structures support ETFE membranes?
Steel or aluminium grids, arches, cable nets and frames sized for wind, snow and maintenance loads.
Is ETFE a structural material on its own?
No. ETFE carries tensile membrane forces into edge clamps — primary structure resists global loads.
How does cushion pressure affect stiffness?
Internal air pressure stiffens cushion skins, influencing span capability between supports — part of structural analysis.
What load cases are considered?
Wind, snow, dead load, maintenance, temperature movement and seismic cases per local codes and project brief.
How is support spacing determined?
Spacing follows foil gauge, system type (single vs cushion), deflection limits and architectural module grid.
What role do cables play?
Cable nets and edge cables distribute loads and control form — prestress is coordinated with ETFE installer and engineer.

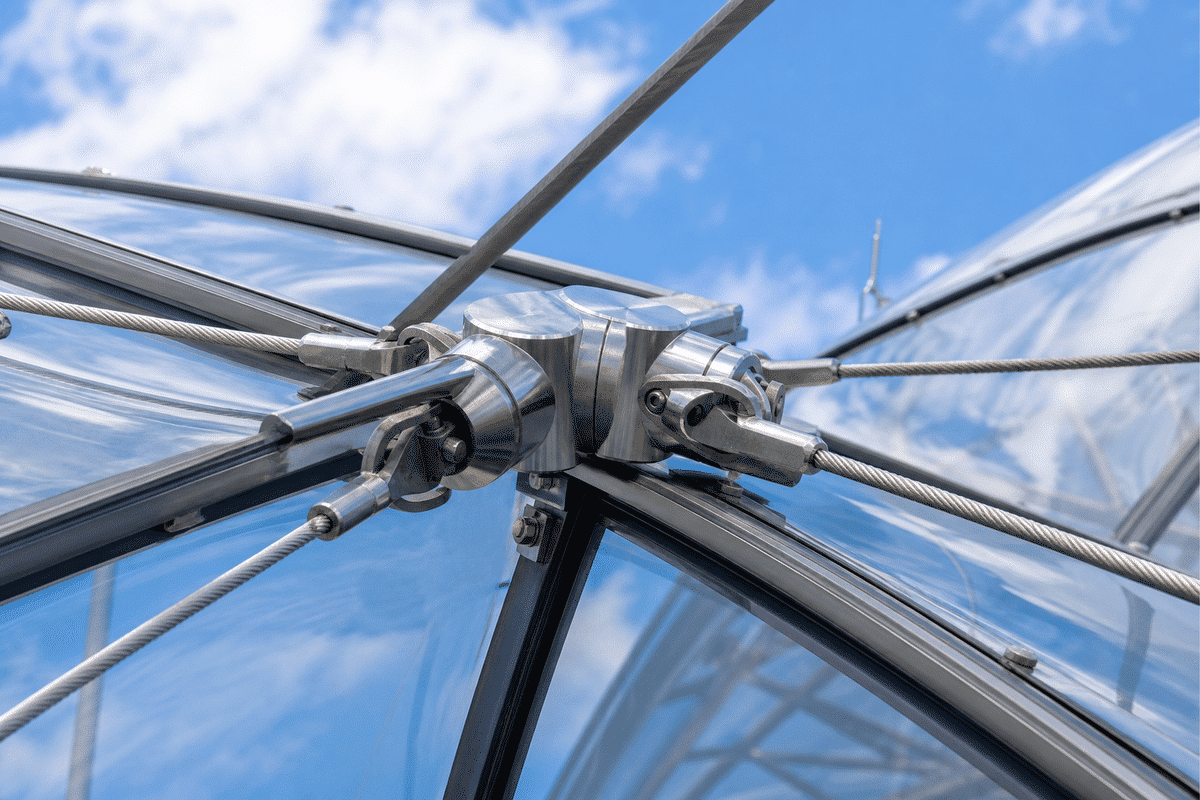

How are edge clamps engineered?
Clamps transfer membrane forces to frames — detailing must be weathertight and tolerant of thermal movement.
Does ETFE reduce primary steel weight?
Very low film weight reduces structural demand versus heavy glazing — often lower steel tonnage and foundation load.
Who leads structural coordination?
Structural engineer of record with ETFE specialist input on membrane forces and module layout.
Can ETFE span large distances?
Large spans use efficient grids and cushions — form-finding aligns architecture with structural efficiency.
What documents define structural design?
Calculations, drawings, weld specs and inflation schematics issued for approval before fabrication.
How do I start structural coordination with AAKS?
Share architectural model and load jurisdiction via contact-us.html for ETFE structural input.
