Architectural ETFE films are commonly discussed in the approximate 100 µm to 300 µm range, with layer role mattering as much as gauge.
ETFE film thickness
Film Specification
10 min read
Updated July 2026
ETFE Film Thickness Guide — Layer Gauges Explained
Film gauge is selected per layer role — outer weathering, inner optics and structural span — not as a one-size specification for every ETFE product.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Film Thickness Guide

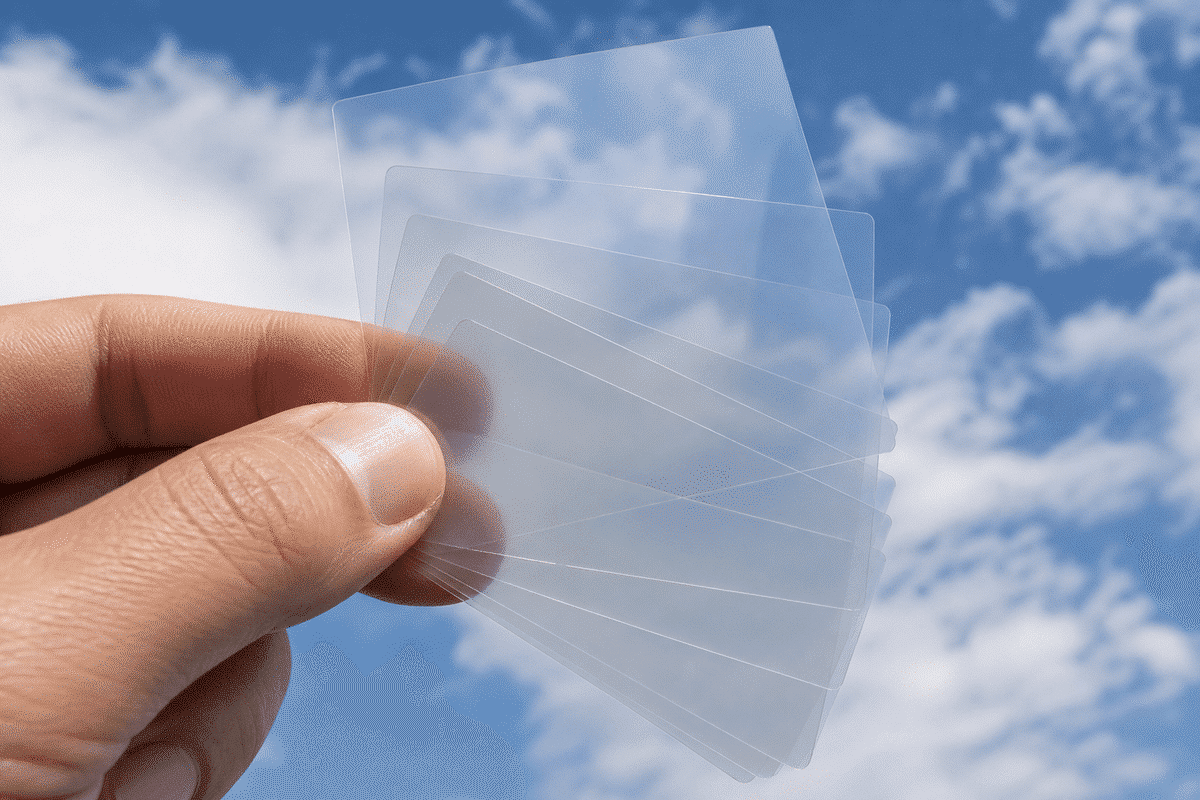

Architectural ETFE typically spans roughly 100 µm to 300 µm per layer. This guide explains how thickness interacts with cushion build-ups, support spacing and visual outcomes without treating heavier as automatically better.
Engineering overview
Outer weathering layers may differ from inner optical or print layers. Cushion performance is defined by the full build-up, not one thickness alone.
Industry importance

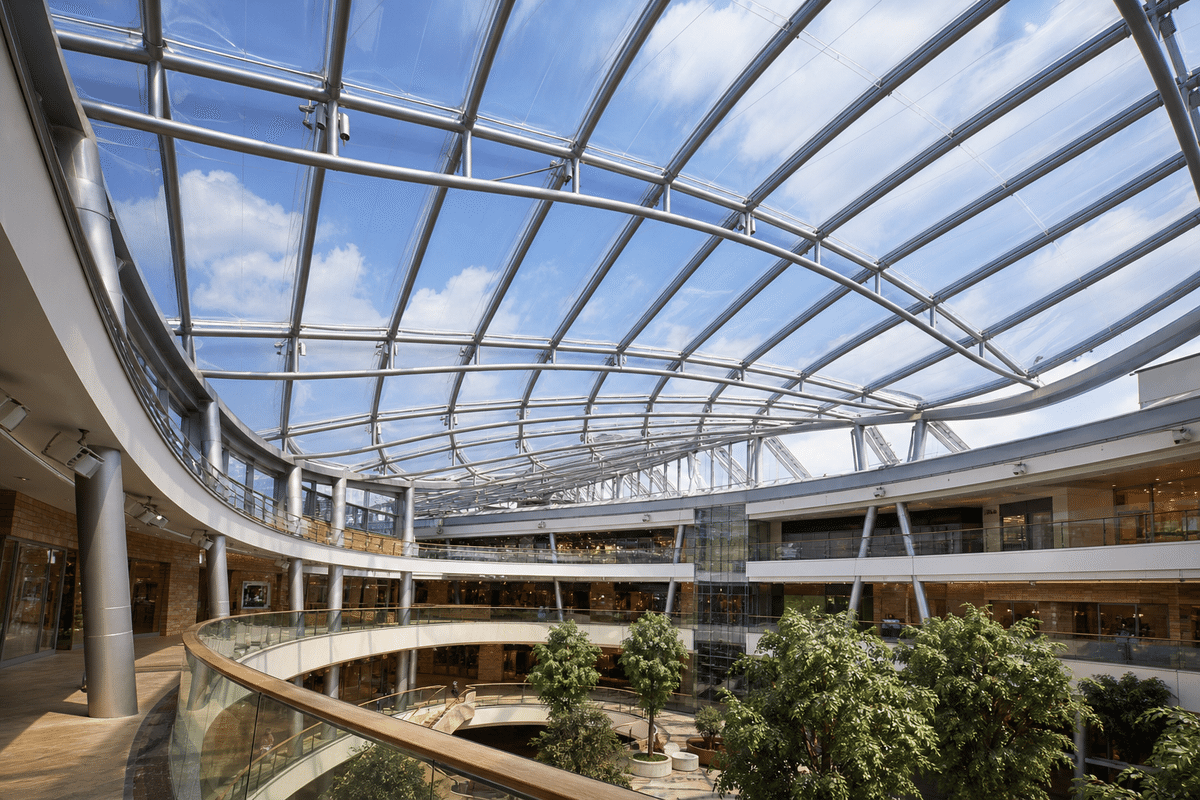

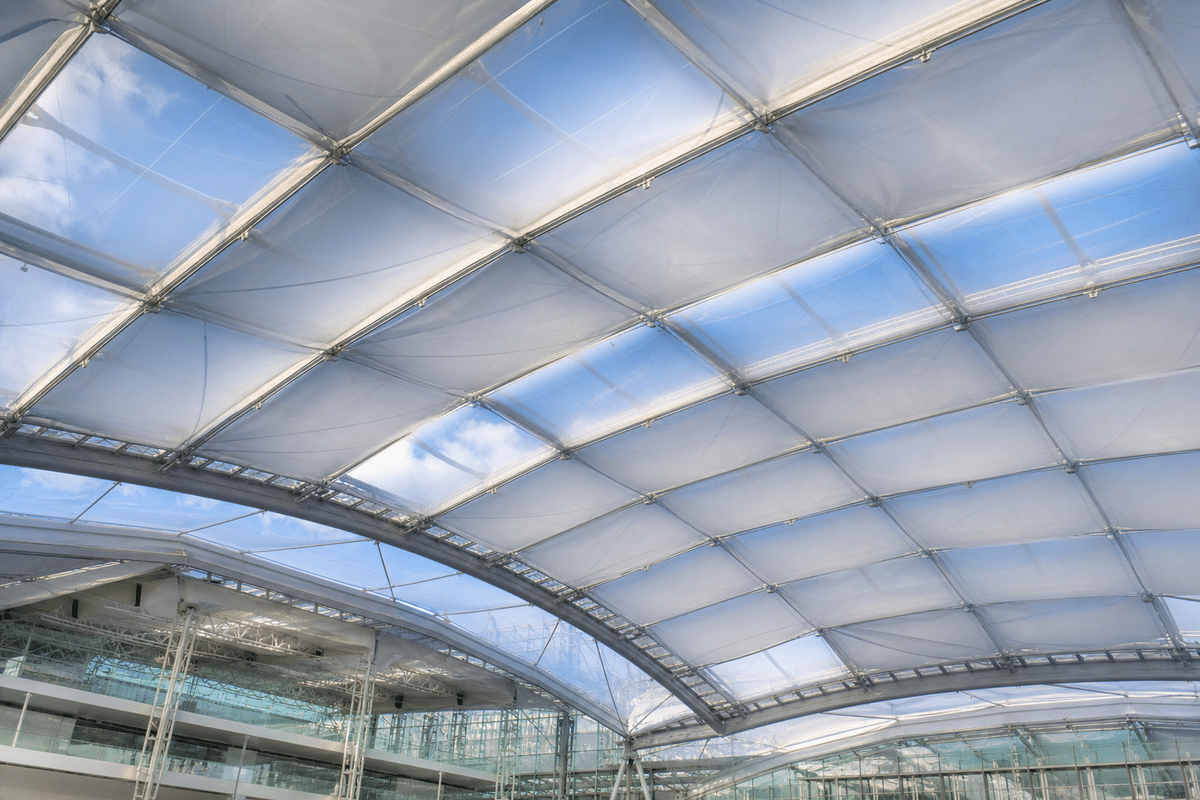

Thickness selection affects spanning, handling, optics and durability across airports, stadiums and commercial atria.
Engineering
How Film Gauges Drive System Performance
Film thickness guides structural spanning, durability and optical behaviour — always confirmed in project engineering.
Detailed explanation

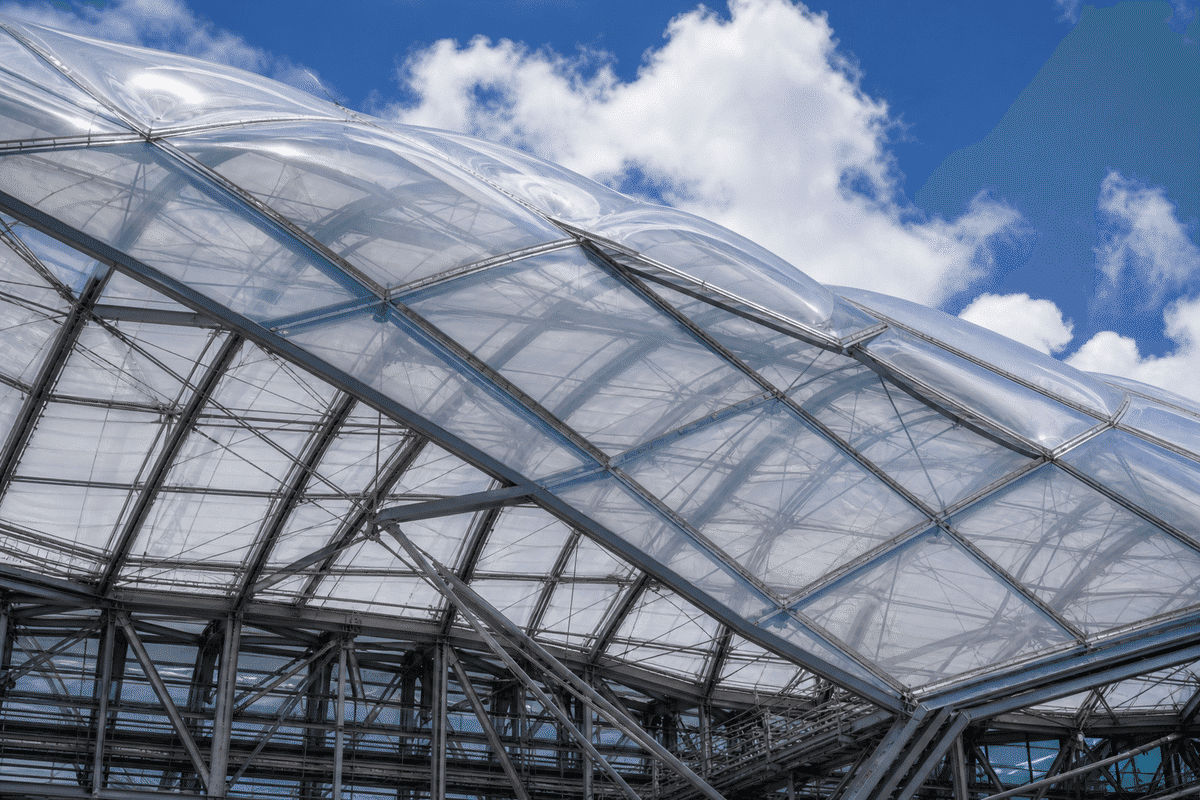

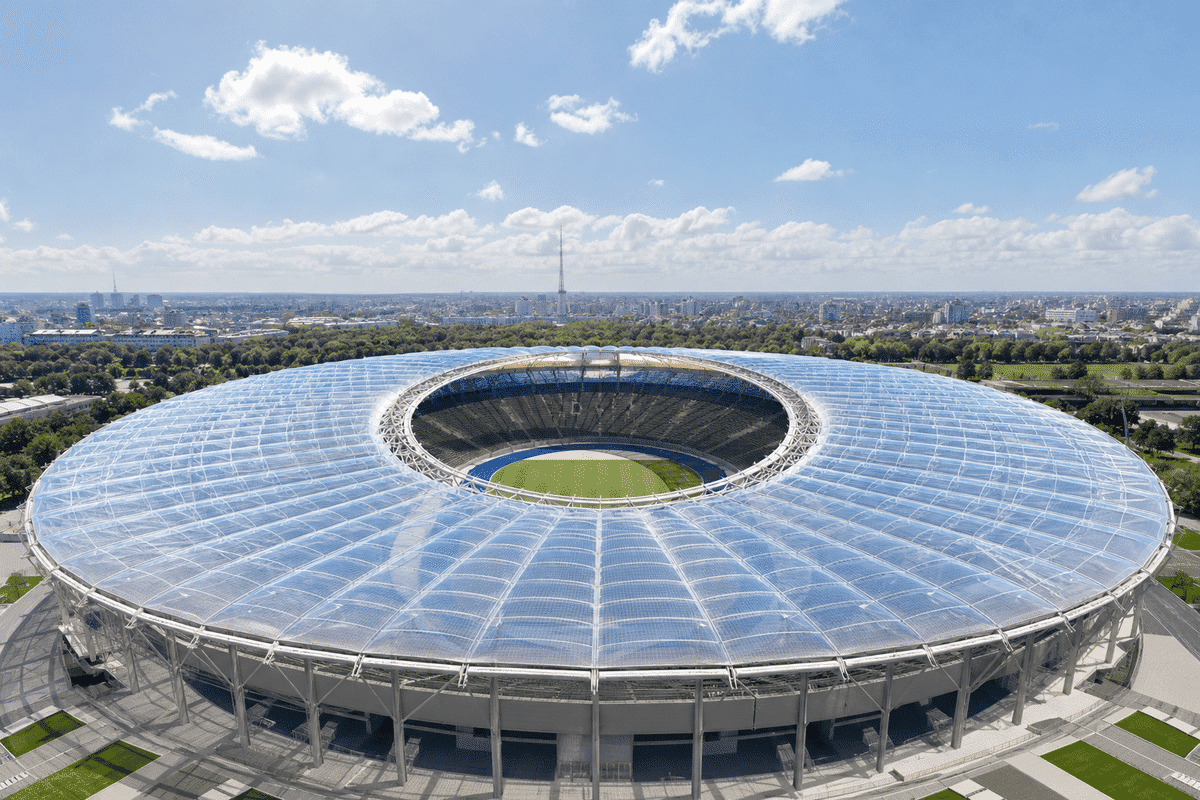

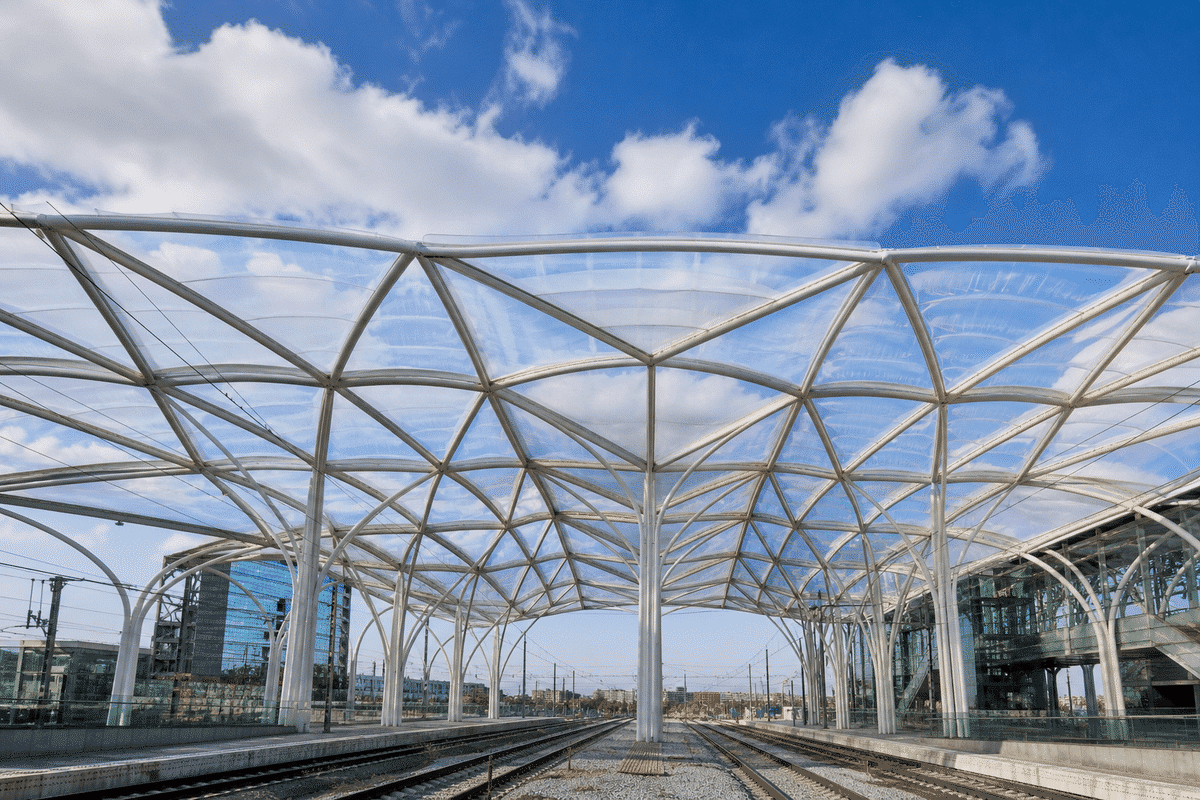

Single-layer roofs choose gauges for stress and support spacing. Multi-layer cushions assign outer, middle and inner roles with potentially different gauges.
Working principle
Thicker is not automatically better — clarity, print density, layer count and cushion geometry drive the visual and performance result.
Engineering concepts
Selection factors include wind and snow demand, desired light transmission, frit requirements, thermal targets and fabrication method.
Specifications
Typical Film Gauge Ranges
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Architectural range | About 100–300 µm per layer | Indicative |
| Light inner layers | About ~100 µm | Some cushions |
| Common mid range | About 150–200 µm | Frequent spec |
| Heavy outer layers | About 250–300 µm | Demanding roofs |
| Solar / lamination | About 50–100 µm | Non-architectural uses |
| Layer role | Outer vs inner differs | Not one gauge for all |
| Selection driver | Span, loads, optics | Engineering led |
| Verification | Factory QA & certificates | On delivery |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE film thickness early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Film Thickness Guide supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE film thickness understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE film thickness prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE film thickness outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery

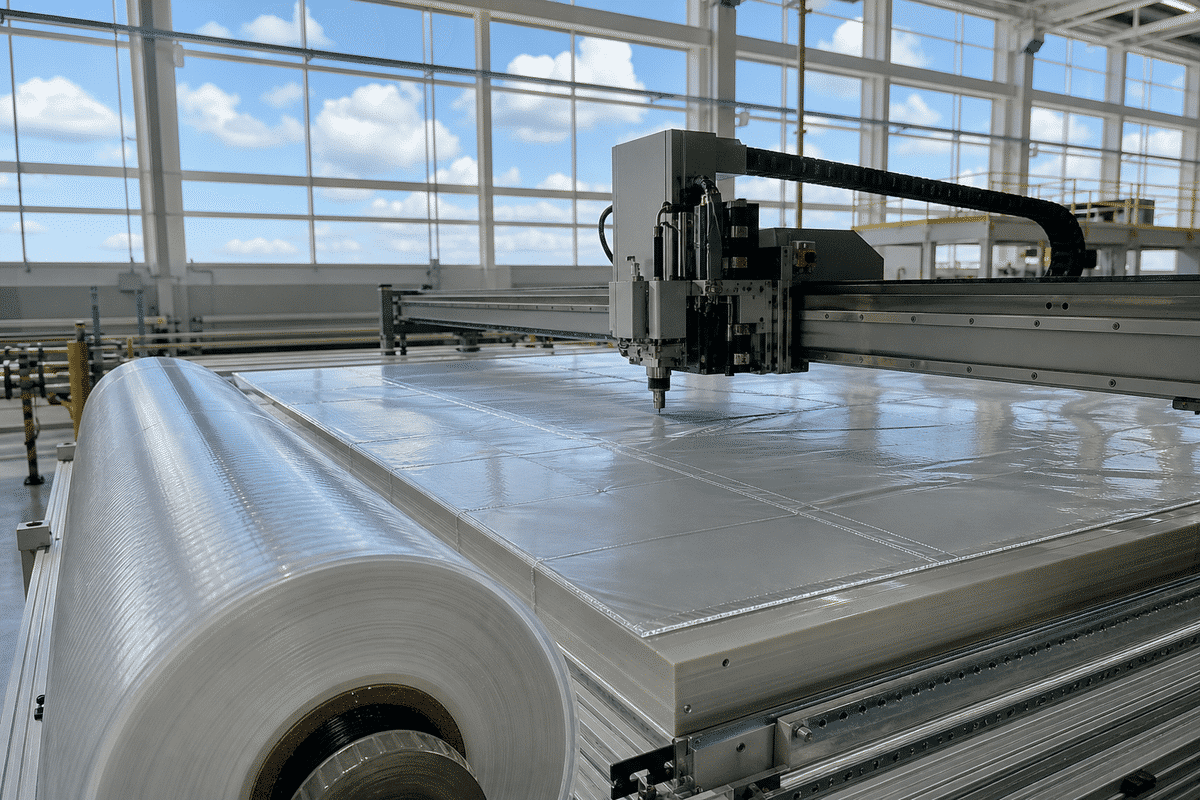

Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing

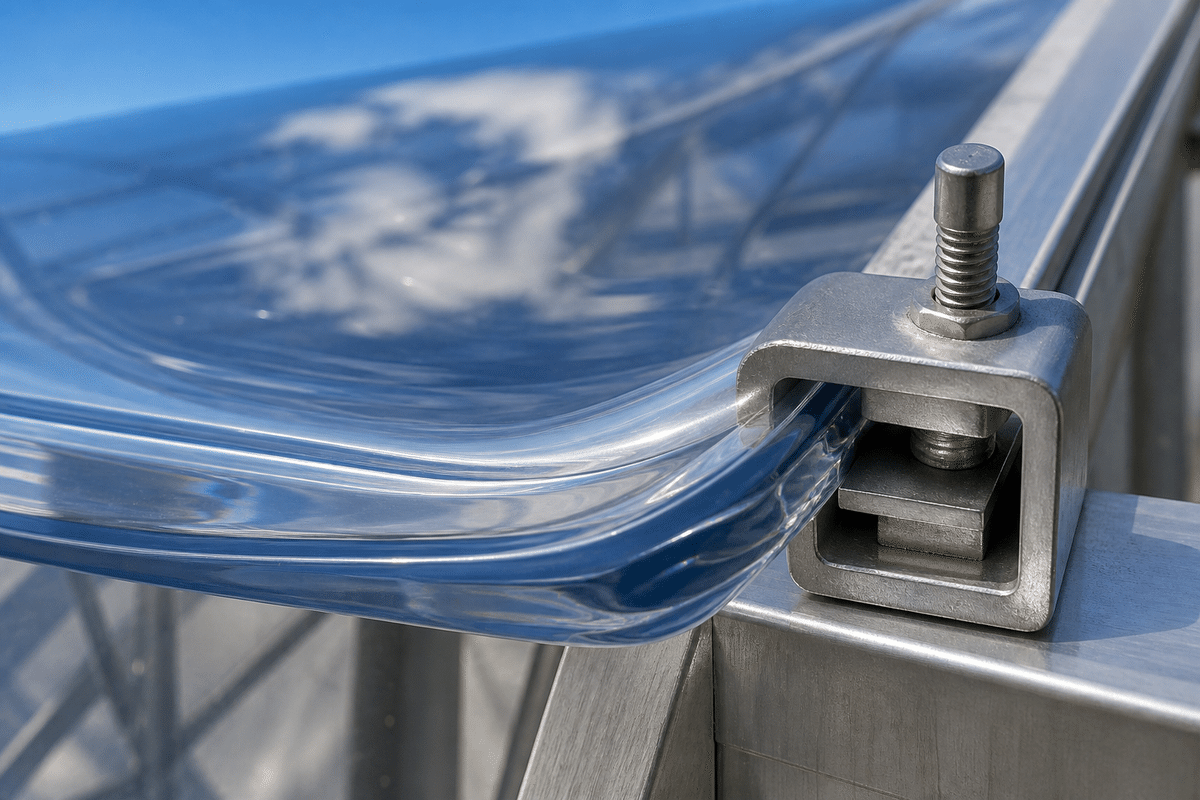

Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE film thickness benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE film thickness follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

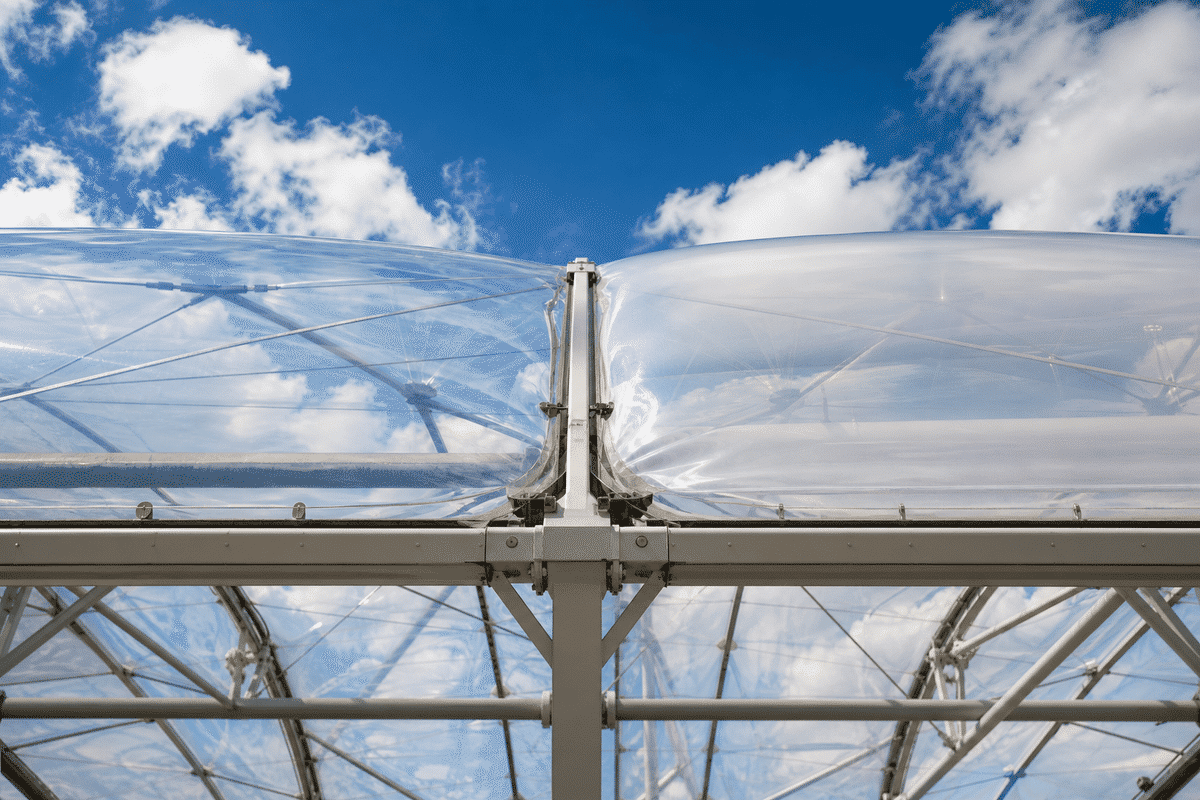

Thinner foil layer vs Heavier outer layer
Qualitative comparison for ETFE film thickness — confirm project-specific test data before specification.
| Criteria | Thinner foil layer | Heavier outer layer |
|---|---|---|
| Typical gauge | ~100 µm inner | ~250–300 µm outer |
| Primary role | Inner / optical layer | Weathering / impact |
| Span sensitivity | Higher deflection risk alone | Robust outer shell |
| Weight | Minimal added mass | Moderate increase |
| Handling | Lighter welds | Heavier fabrication |
| Application | Mid-cavity foils | Stadium / airport outers |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What thickness range is common for architectural ETFE?
Architectural films are often discussed in the approximate range of 100 µm to 300 µm per layer, with other gauges for details or specialty layers.
Does thicker always mean better performance?
Not necessarily. Layer count, cushion geometry, print strategy and support spacing often matter more than simply increasing gauge.
What thickness is used for greenhouse ETFE?
About 100–150 µm layers appear in horticultural applications, but final selection follows crop, climate and structure engineering.

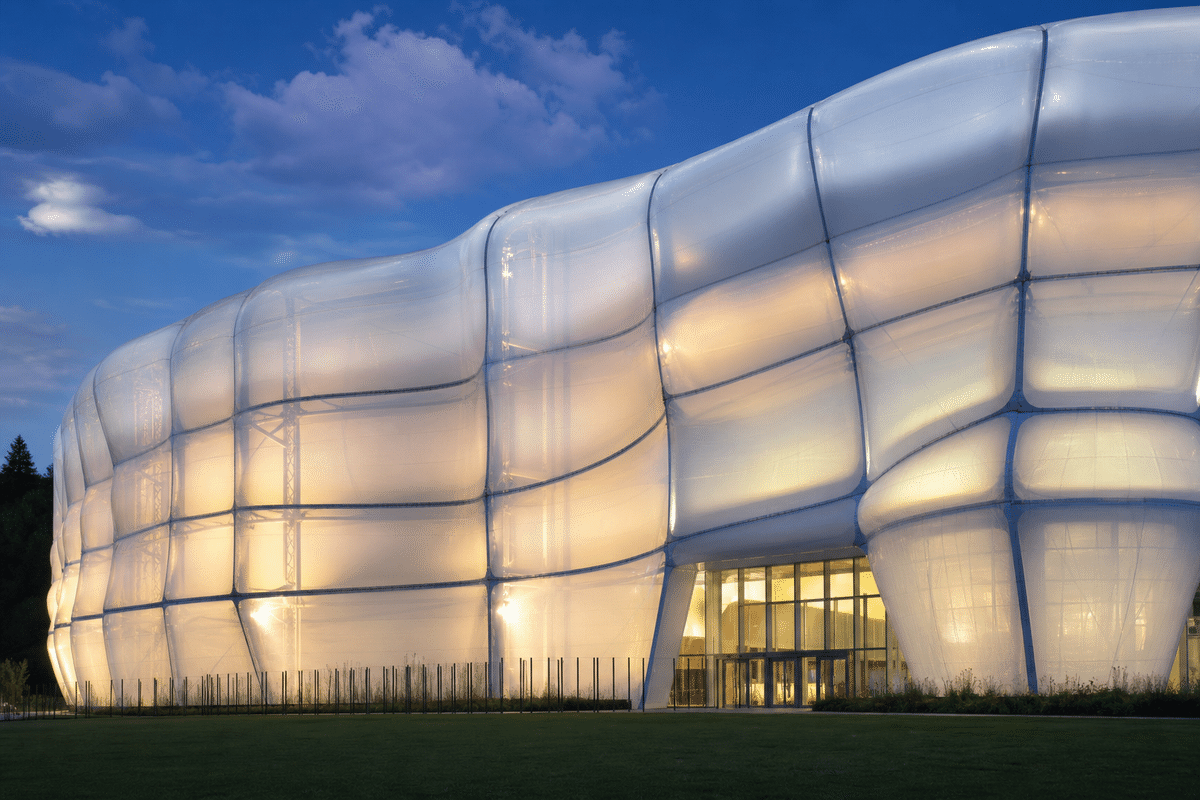

What gauges suit stadium or airport cushions?
Heavier outer layers in the ~200–300 µm range are frequently specified for demanding roofs — always project-specific.
Can inner and outer layers differ in thickness?
Yes. Outer foils often prioritise weathering and impact resistance while inner layers support optics and insulation cavities.
How does thickness affect light transmission?
Thicker clear foils may reduce transmission slightly, but frit, layer count and diffuser strategies usually dominate optical outcomes.
Who selects final film gauges?
The ETFE engineer coordinates gauges with structural, thermal and fabrication requirements — not a single catalogue thickness for all jobs.
Is 50 µm ETFE used in architecture?
50 µm is more typical for solar lamination or electronics — architectural envelopes usually use heavier gauges.
How are thicknesses verified on delivery?
Material certificates and factory QA should confirm supplied gauges against specification.
Can thickness be changed during design?
Yes, during engineering iterations — early engagement avoids late changes to patterning and clamps.
Does weld width depend on thickness?
Welding and seam design follow manufacturer guidance for the specified gauge and layer build-up.
Where can I discuss thickness for my roof?
AAKS Architecture provides thickness guidance after reviewing your project — request a consultation via contact-us.html.
