Single-layer ETFE uses pretensioned fluoropolymer foil spanning between structural members for canopies, skylights and lightweight roofs.
ETFE single layer system
Single-Layer Systems
10 min read
Updated July 2026

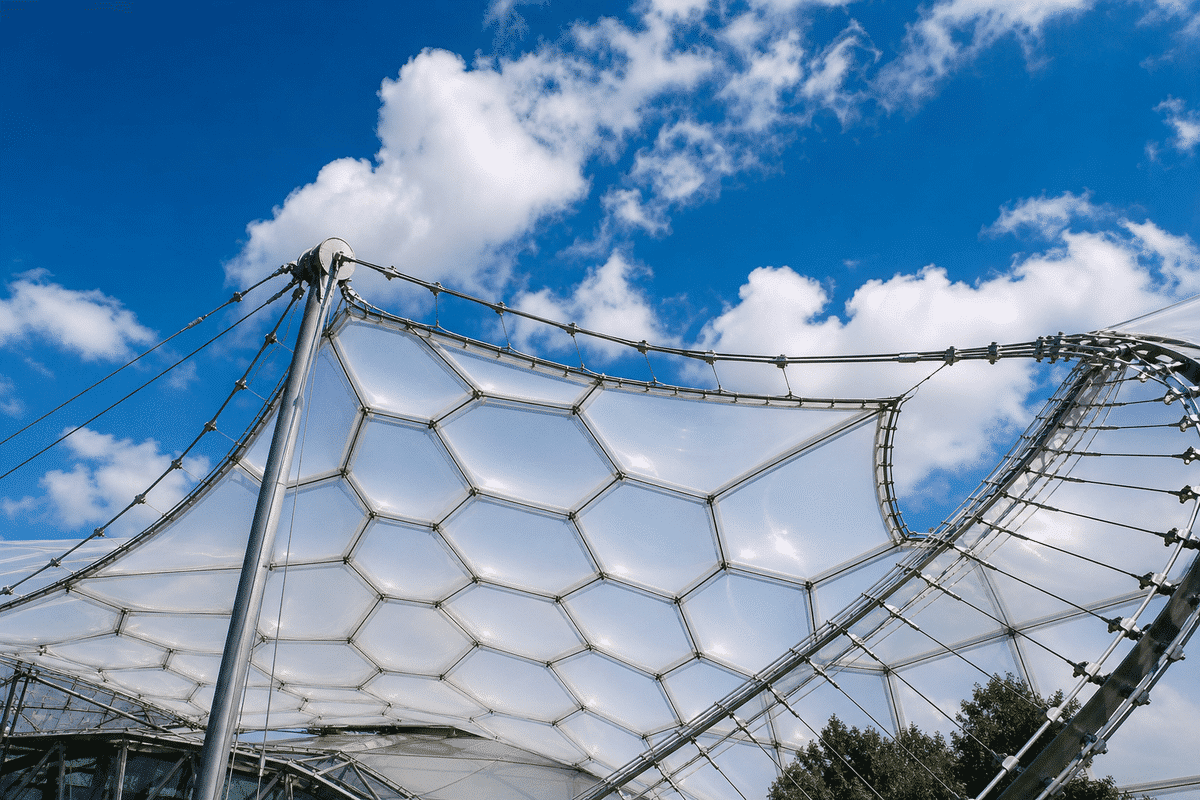

ETFE Single-Layer System — Tensioned Foil Applications
Single-layer tensioned ETFE suits canopies, skylights and lightweight roofs where insulation demands are modest — simpler than cushions but still engineered for wind, span and edge detail.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Single-Layer System
When a single foil layer is enough, how gauge and support spacing are chosen, what thermal limits apply, and where single-layer excels versus when air cushions become the better system choice.
Engineering overview
Film gauge, clamp detailing and primary structure spacing define structural performance. Thermal performance is limited without additional strategies.
Industry importance
Single-layer systems suit entrance canopies, walkway covers, modest spans and projects prioritising simplicity and visual lightness.
Engineering
Tensioned Foil Roofs & Façades
Single-layer ETFE delivers high daylight with minimal weight when engineered for local wind, rain and maintenance access.
Detailed explanation
Support grids, cable nets or frames carry membrane tension. Edge detailing and drainage falls are critical for weather performance.
Working principle
The foil acts as a continuous membrane under tension, shedding water and admitting light without the inflation infrastructure of cushions.
Engineering concepts
Key decisions include span between supports, pretension method, print or frit for solar control, and protection during construction.
Specifications
Single-Layer System Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Single-Layer System | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE single layer system early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Single-Layer System supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE single layer system understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE single layer system prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE single layer system outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4

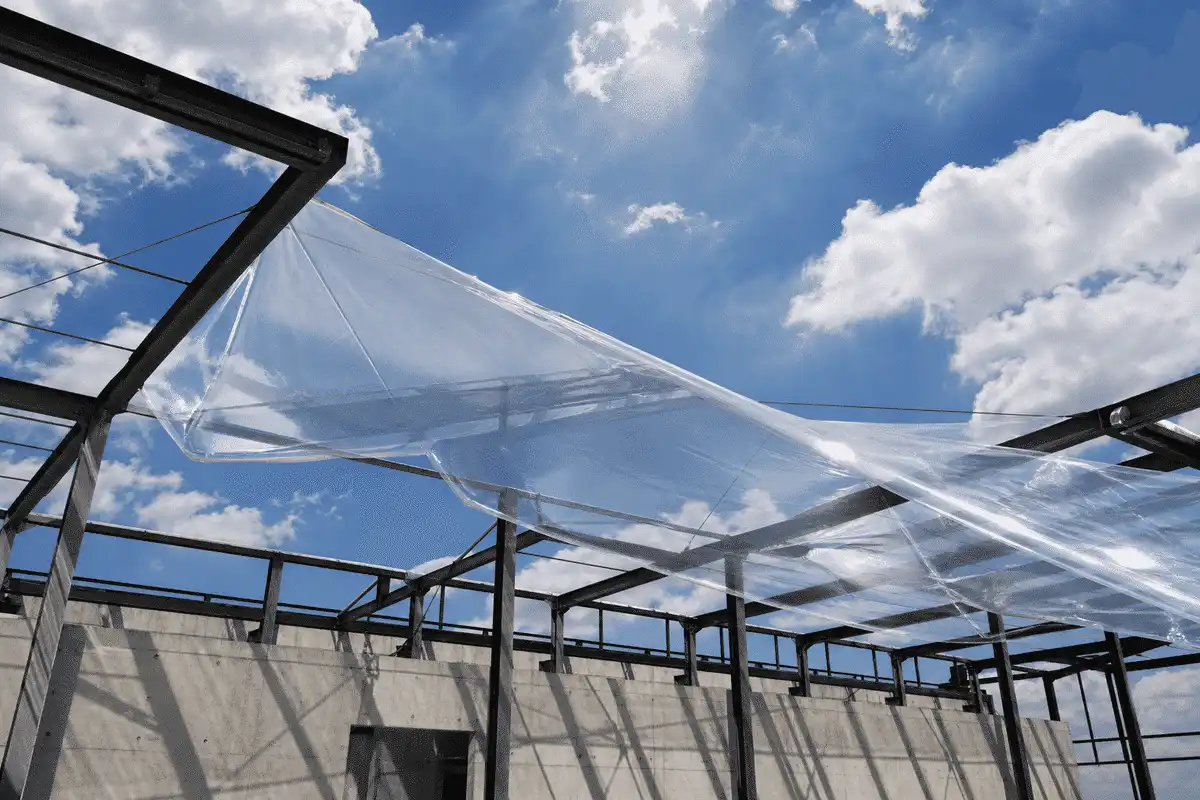

Tension or inflation

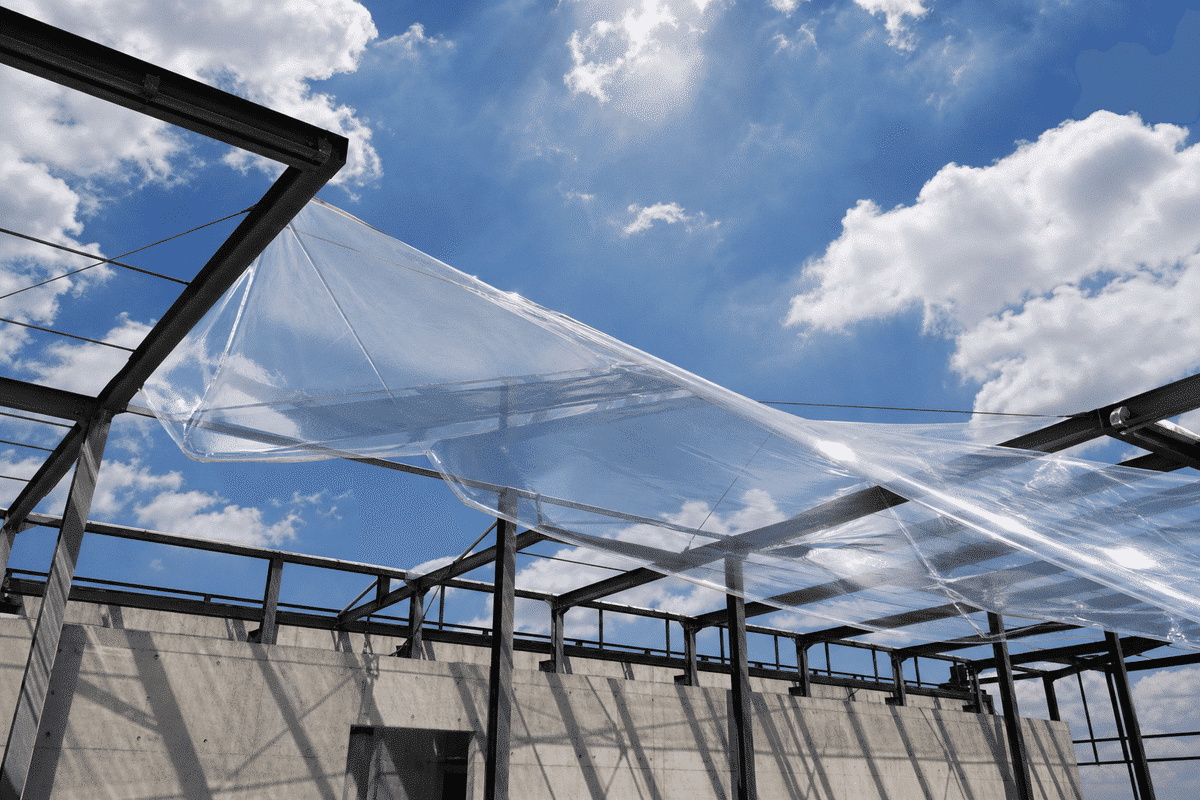

Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE single layer system benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE single layer system follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

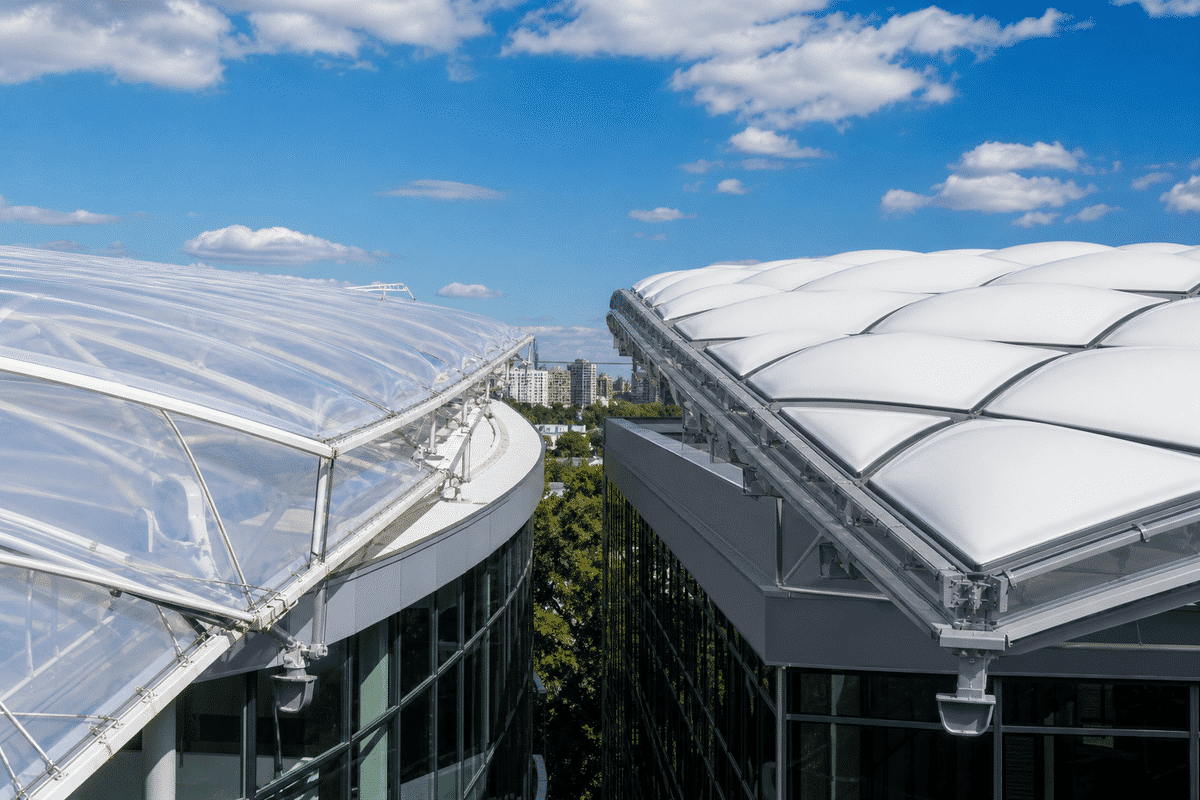

Single-layer ETFE vs Air cushion ETFE
Qualitative comparison for ETFE single layer system — confirm project-specific test data before specification.
| Criteria | Single-layer ETFE | Air cushion ETFE |
|---|---|---|
| Insulation | Basic | Good (cushion cavities) |
| Complexity | Lower | Higher with inflation |
| Best fit | Canopies, smaller roofs | Large insulated roofs |
| Thermal | Limited without extras | Improved layering |
| Cost drivers | Film + tensioning | Fans + controls + layers |
| Maintenance | Inspection & cleaning | Inflation monitoring too |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery

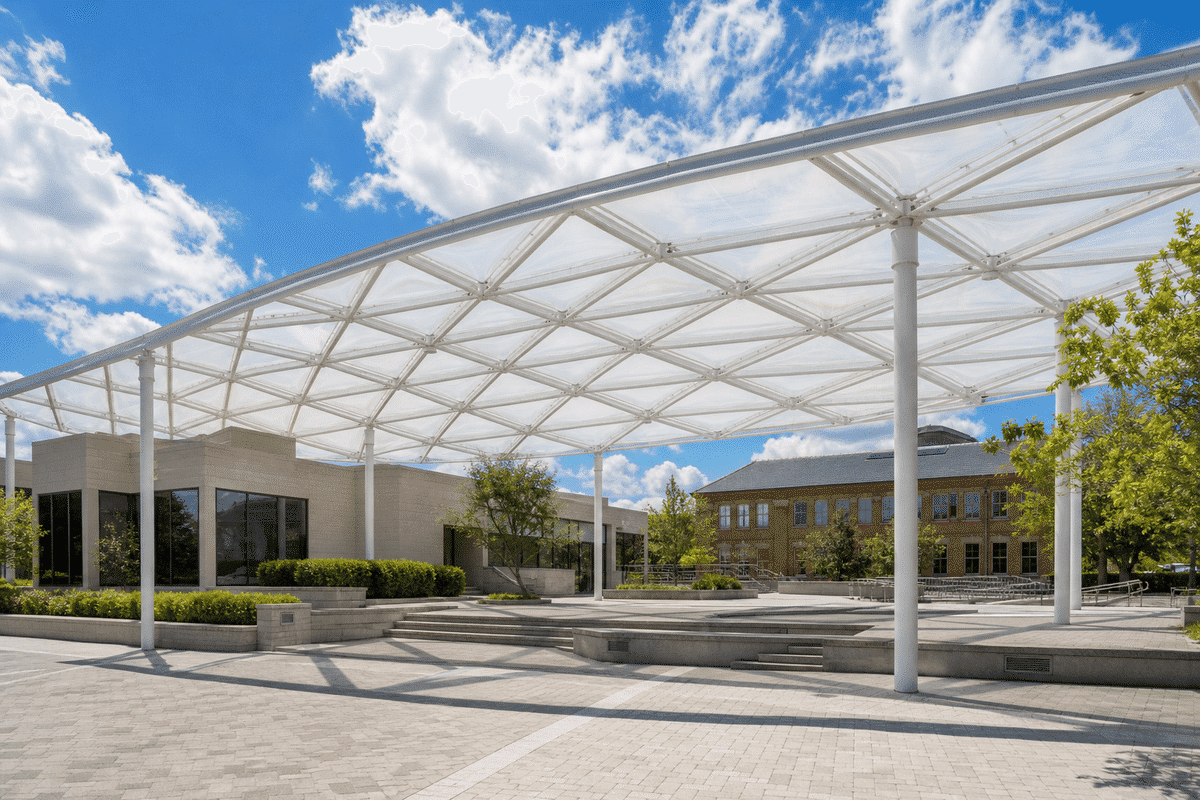

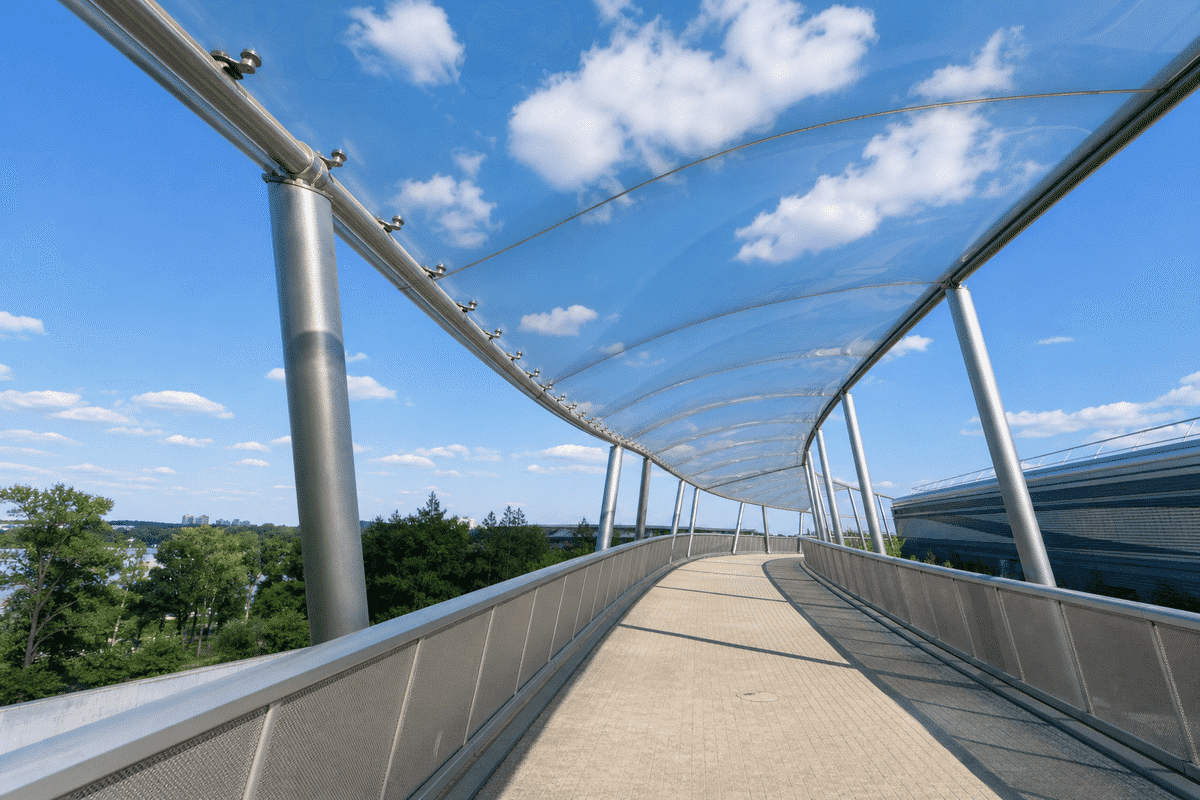

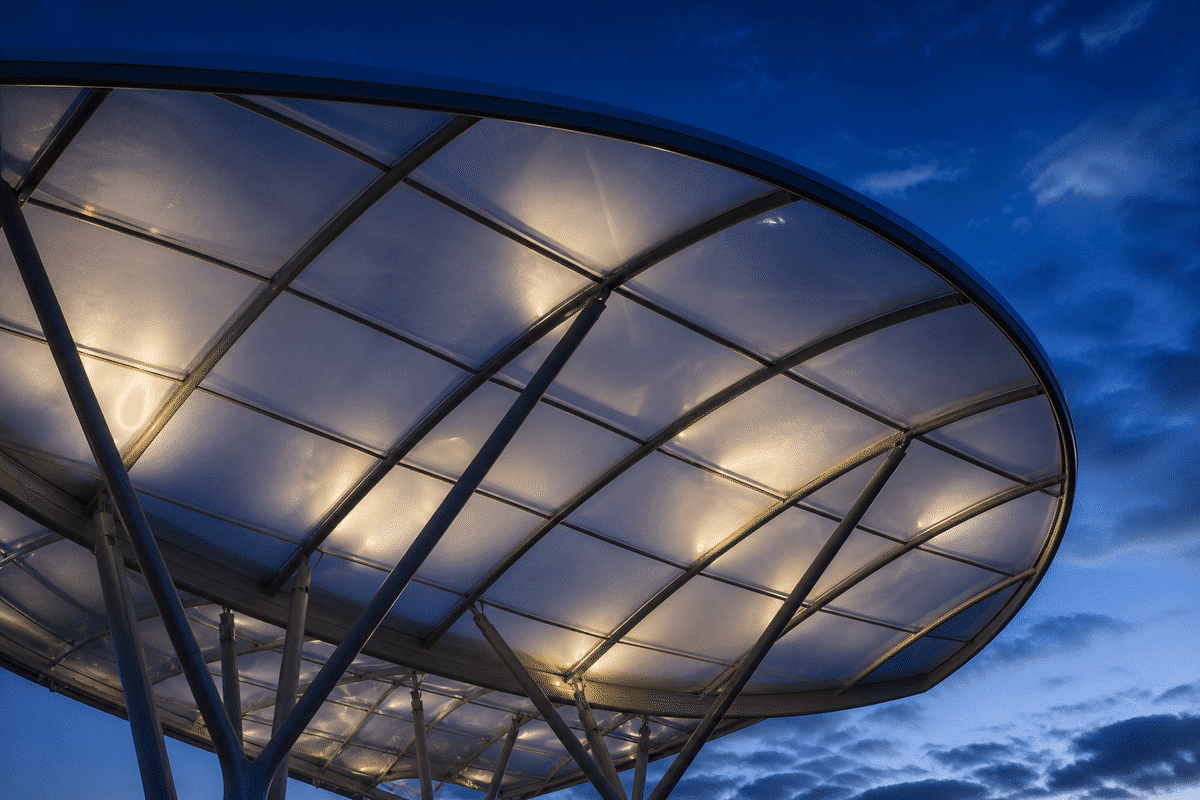

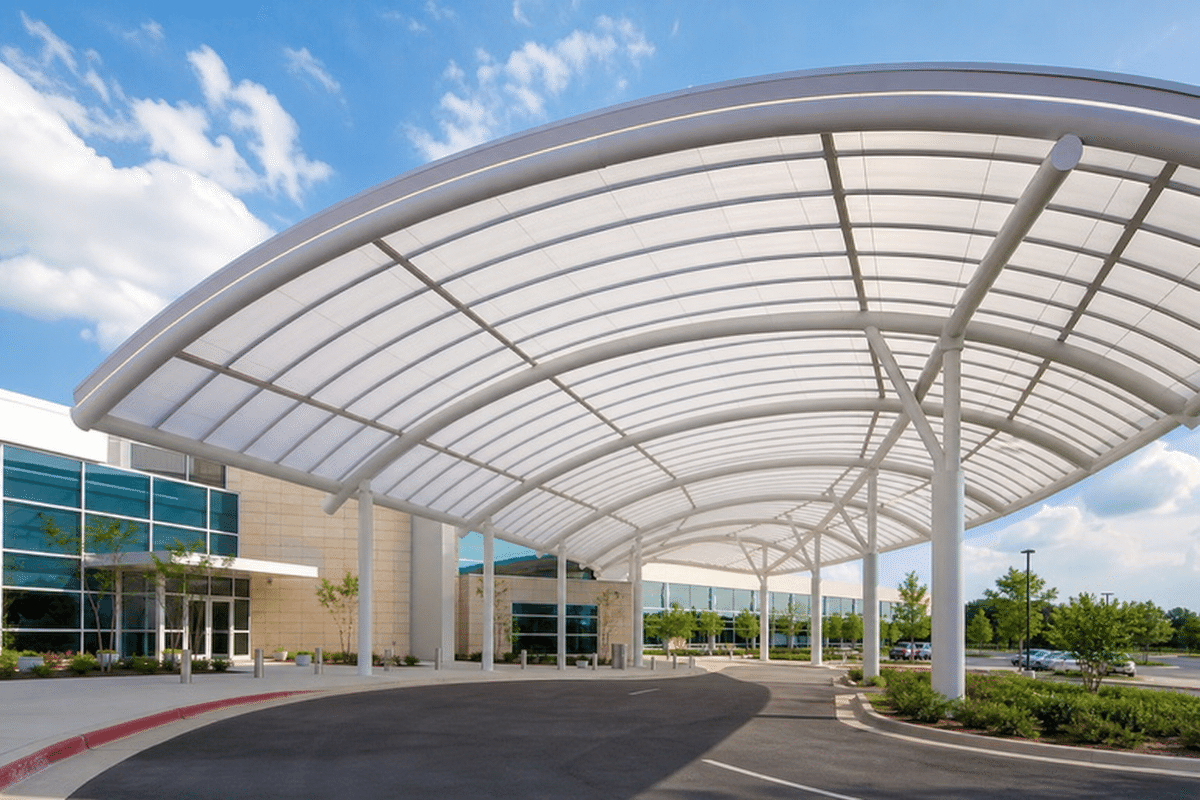

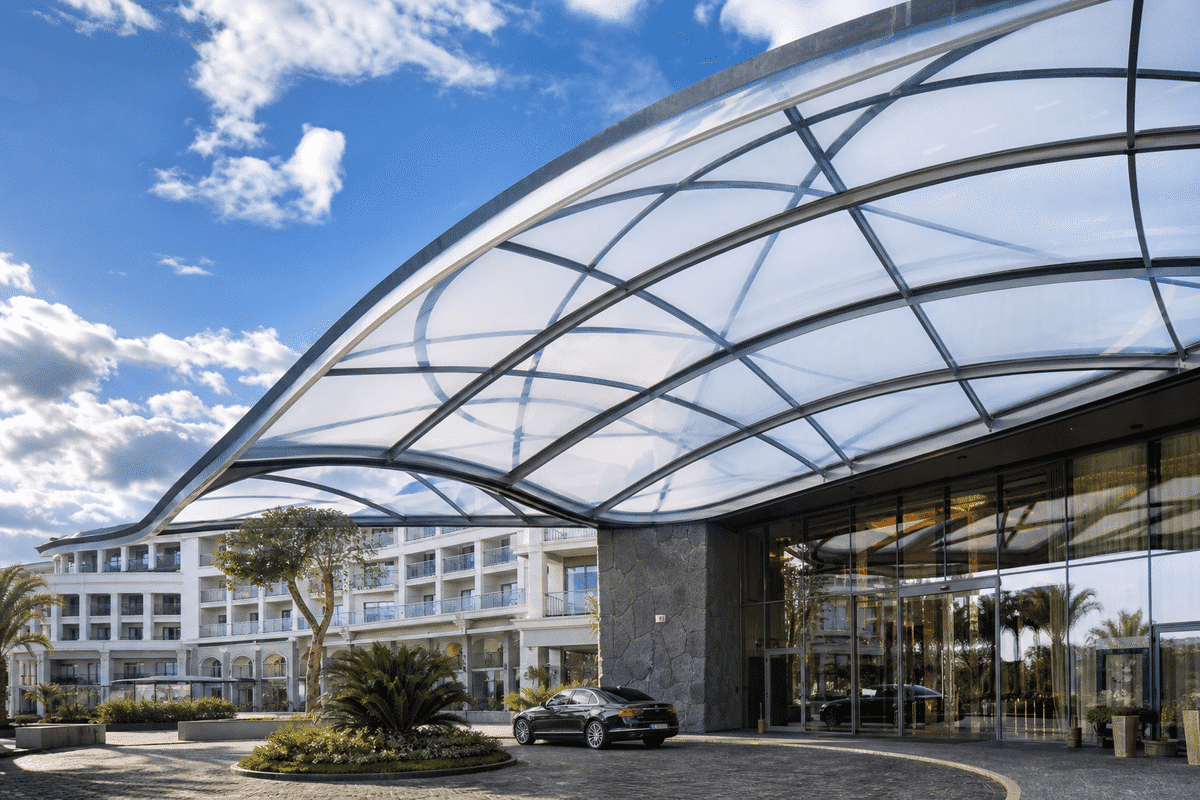

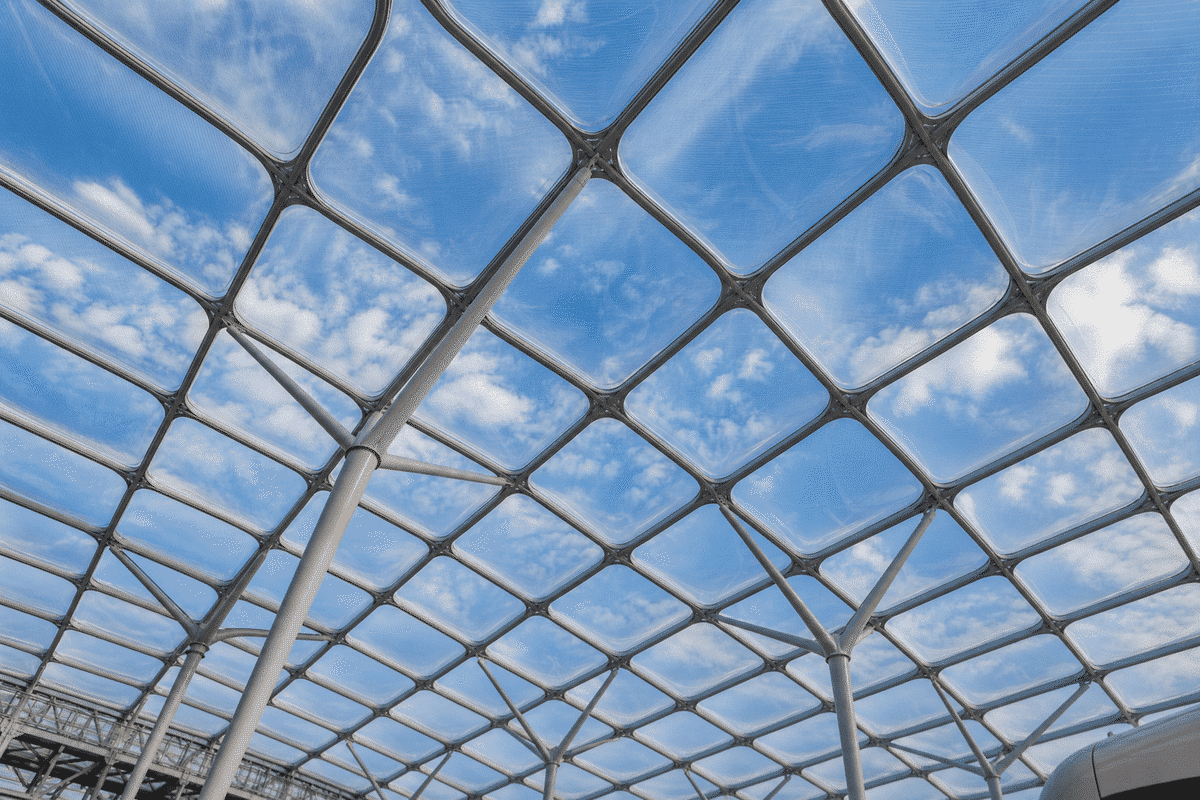

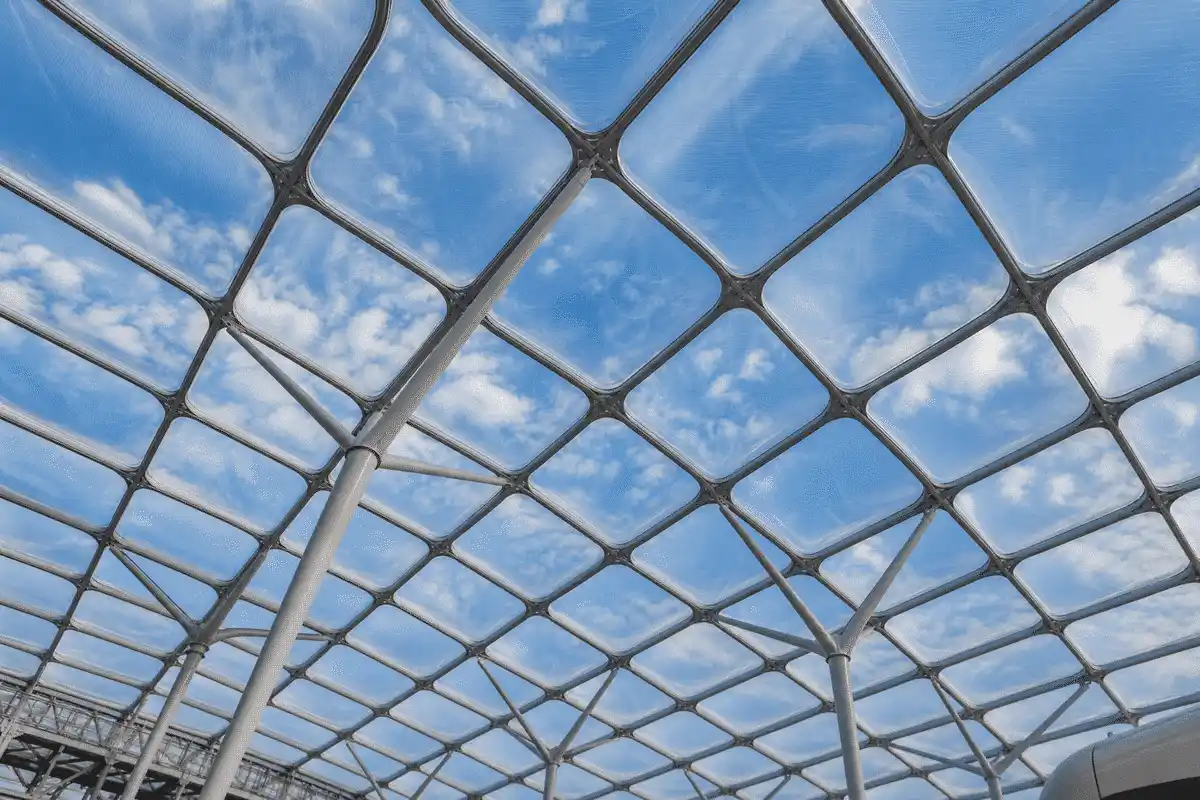

Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What is a single-layer ETFE system?

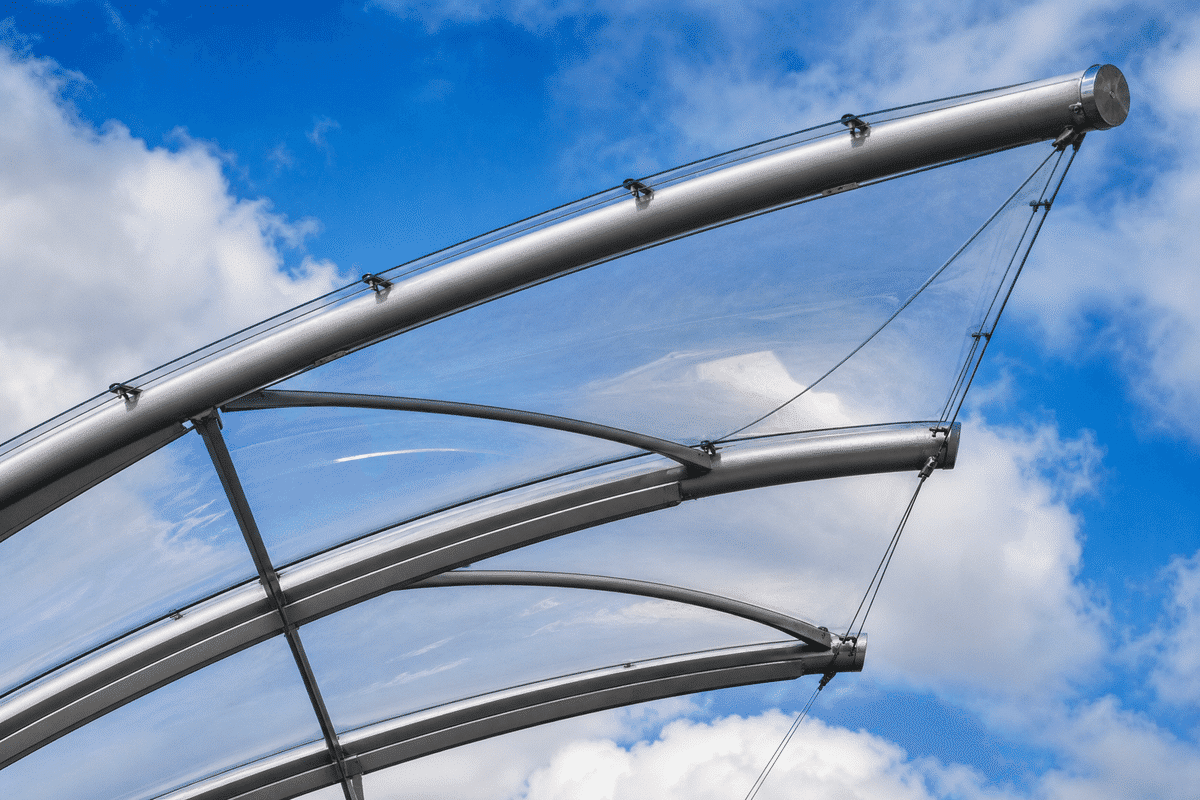

One tensioned ETFE foil fixed at edges over a structural grid — without inflated air cavities between multiple foils.
When is single-layer appropriate?
Many canopies, skylights and lightweight roofs where full cushion insulation is not required — AAKS advises after reviewing spans and climate.
How is film thickness chosen for single layer?
Gauge follows stress, span between supports, wind demand and durability — see the film thickness guide for typical ranges.
What are thermal limits of single layer?
Thermal performance is basic without air cavities. Additional strategies may be needed for conditioned spaces.
Is single-layer faster to install?
Fewer layers and no inflation commissioning simplify installation versus multi-layer cushion fields.
Does single-layer transmit more daylight?
One clear foil can maximise transmission, but solar control may rely on print or complementary shading.
How is single-layer fixed at edges?
Aluminium clamps, keder or extruded frames create weathertight edge detail coordinated with primary structure.
Can single-layer form complex curves?
Yes — flexibility supports freeform geometry when cable nets or frames provide correct support spacing.
Is rain noise higher on single layer?
Thin single foils can drum under rain — acoustic review is wise for quiet interior uses beneath single-layer skylights.
What maintenance does single layer need?
Inspection of tension, clamps and soiling — no inflation system, but puncture repair protocols still apply.
Can single-layer upgrade to cushions later?
Retrofit to cushions is usually impractical — system choice should be made at concept.
How do I confirm single-layer suitability?
Share span, climate and use with AAKS via contact-us.html for system recommendation.
