ETFE Manufacturing Process — Fabrication & Welding
Precision patterning, welding and cushion assembly in controlled factory conditions define ETFE quality before modules ever reach site — CNC cutting, QA and packing included.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Manufacturing Process
Follow ETFE from film roll to inflated cushion module: how patterns are generated, welds are quality-checked, frames prefabricated, and assemblies packed for transport to protect optical and structural integrity.
Engineering overview
Welding layouts, layer registration and QA packing protect optical quality and seam integrity through transport.
Industry importance
Prefabrication quality underpins fast site installation for large modular roof fields.
Engineering
Extrusion, Patterning, Welding & Cushion Assembly
Factory controls reduce site risk — fabrication methods vary by manufacturer and project complexity.
Detailed explanation
Patterning accounts for biaxial behaviour and edge allowances. Multi-layer cushions require precise layer alignment.
Working principle
Manufacturing translates engineering drawings into repeatable modules traceable to QA records.
Engineering concepts
Verify film grade, thickness strategy and print registration against approved shop drawings before shipment.
Specifications
Fabrication Process Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Manufacturing Process | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE manufacturing process early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Manufacturing Process supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE manufacturing process understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE manufacturing process prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE manufacturing process outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE manufacturing process benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE manufacturing process follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare
Factory-fabricated cushion vs Site-built panel
Qualitative comparison for ETFE manufacturing process — confirm project-specific test data before specification.
| Criteria | Factory-fabricated cushion | Site-built panel |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
How are ETFE cushion patterns created?
CNC patterning from engineering models accounts for biaxial behaviour, weld allowances and edge clamp zones before cutting.
What welding methods join ETFE foils?
Heat welding of foils creates continuous seams. Weld width and parameters follow manufacturer guidance for each gauge and layer build-up.
Is manufacturing done in a controlled environment?
Factory fabrication under QA procedures improves dimensional accuracy versus field-only assembly.
How are multi-layer cushions assembled?
Individual foils are welded into sealed assemblies sized to the structural grid module before site installation.
What QA checks occur in production?
Material verification, seam inspection, dimensional checks and packing protection are standard factory checkpoints.
Are aluminium clamps prefabricated too?
Frames and clamp components are often prefabricated alongside cushions to match tolerance and programme goals.
How is film grade verified on receipt?
Material certificates confirm supplied gauges and grades against specification before cutting.
Does print or frit happen during fabrication?
Optical layers may be printed or assembled in the factory depending on the approved build-up.

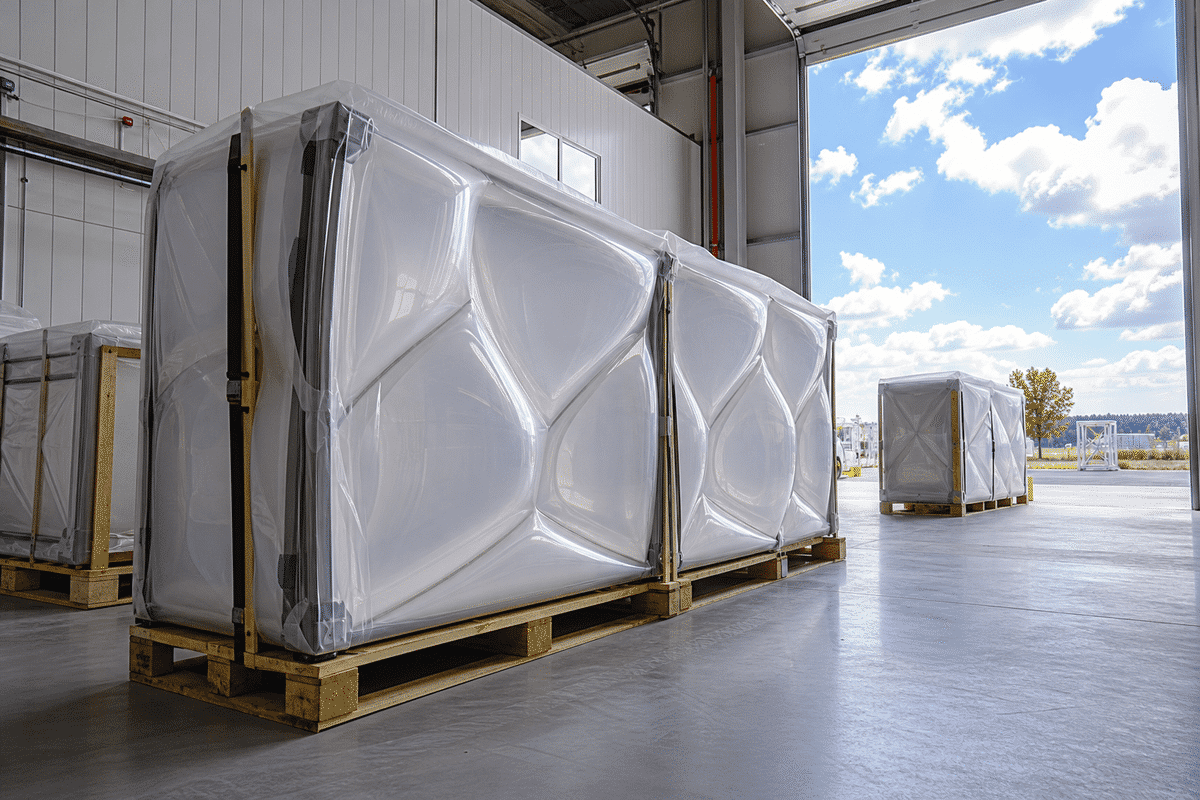

How are modules packed for transport?
Protective packing prevents fold damage and contamination — critical for optical quality on arrival.
Can manufacturing accommodate custom shapes?
Freeform and double-curved geometry is patterned from engineering models — early freeze of geometry aids accuracy.
What documentation leaves the factory?
Module IDs, weld records and packing lists support site installation and quality traceability.
How do I discuss fabrication scope with AAKS?
Share module sizes, layer build-up and programme via contact-us.html for manufacturing planning.
