ETFE Wind Load Performance — High-Wind Engineering
Wind pressures shape cushion geometry, cable prestress and clamp design — ETFE systems are engineered for site wind speeds, not sized from generic membrane rules alone.

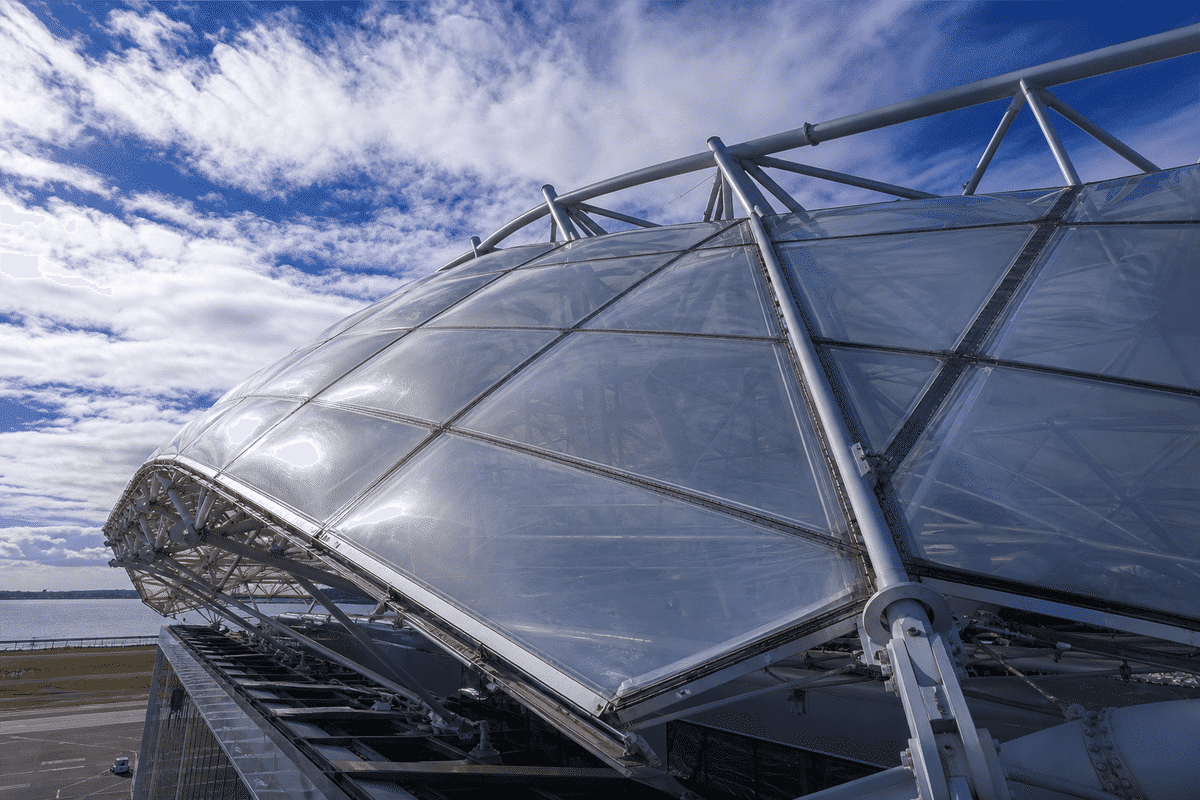

Introduction
Technical Guide
Knowledge-Backed

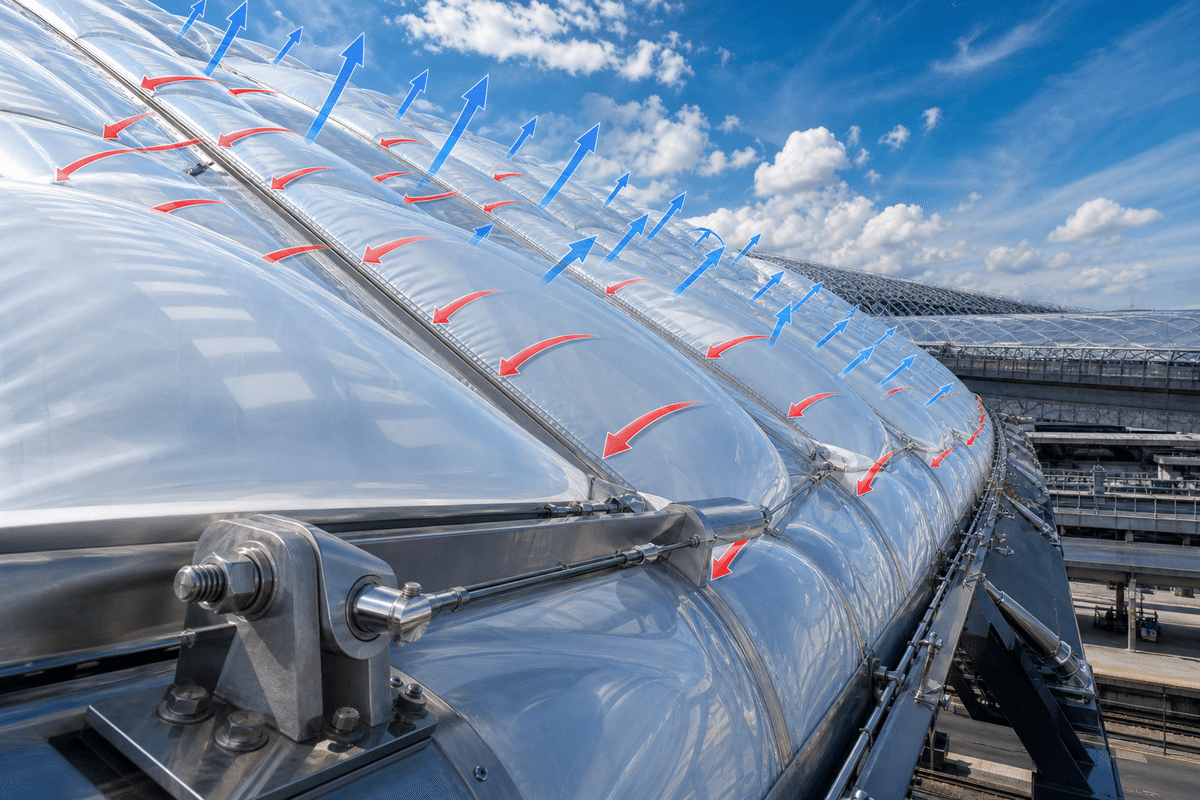

Understanding ETFE Wind Load Performance
High-wind engineering for ETFE: how single-layer and cushion roofs respond to pressure, why edge zones matter, and how inflation setpoints interact with structural wind cases.
Engineering overview
Edge clamps, cable prestress and cushion pressure setpoints are structural inputs — not decorative afterthoughts.
Industry importance
Coastal airports, tall atria and exposed stadia require rigorous wind tunnel or code-based analysis.
Engineering
Wind Pressure, Cushion Stiffness & Anchorage
Wind performance depends on module size, support grid, terrain category and inflation control logic.
Detailed explanation
Under wind, cushions deflect while maintaining pressure within operating bands monitored by sensors.
Working principle
Lightweight envelopes still demand full structural load paths from film through clamps to primary steel or cables.
Engineering concepts
Document design wind speeds, exposure and redundancy requirements in specifications early.
Specifications
Wind-Related Design Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Wind Load Performance | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE wind load early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Wind Load Performance supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE wind load understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE wind load prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE wind load outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE wind load benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE wind load follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

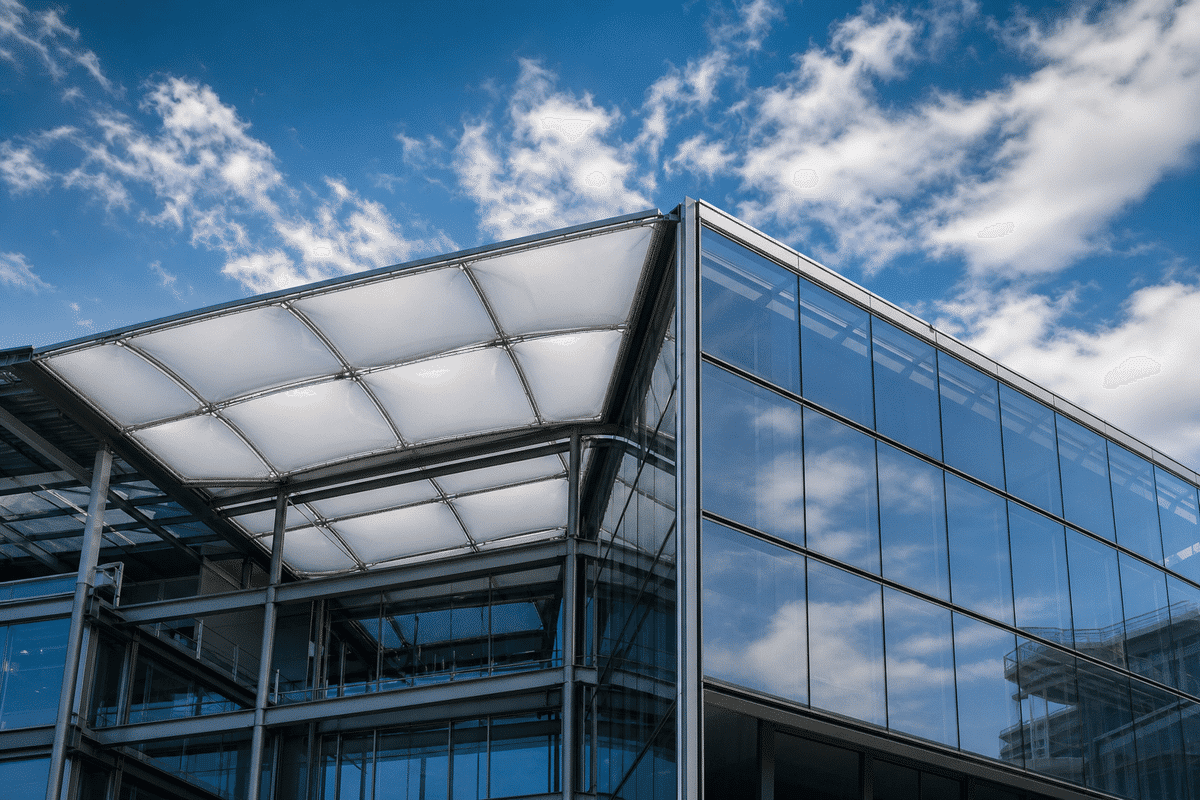

ETFE cushion vs Glass curtain wall
Qualitative comparison for ETFE wind load — confirm project-specific test data before specification.
| Criteria | ETFE cushion | Glass curtain wall |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
Are ETFE roofs engineered for wind?
Yes. Wind is a core design input. Cushion and single-layer systems are sized for site wind pressures including edge effects.
What wind speed can ETFE withstand?
Cushion systems can be engineered for wind speeds exceeding 200 km/h depending on structural design — never a material-only claim.
How do edge clamps affect wind performance?

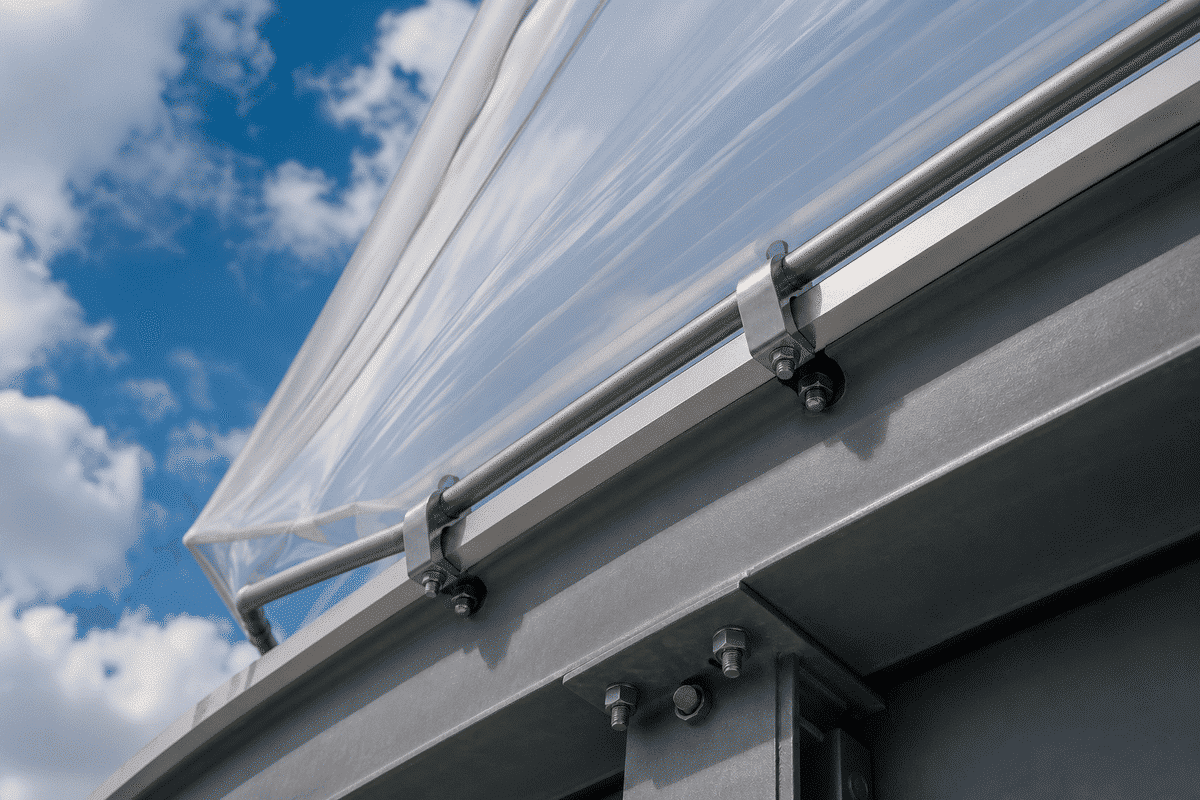

Edge clamps, cable prestress and cushion pressure setpoints are structural elements transferring wind suction and pressure.
Does cushion pressure increase wind resistance?
Operating pressure stiffens cushions against deflection — coordinated with structural analysis, not a substitute for frame capacity.
Are corner and edge zones critical?
Yes. Local wind amplification requires reinforced detailing and sometimes smaller module spans in edge bays.
Do wind tunnel tests apply to ETFE projects?
Major projects may use wind tunnel or CFD studies feeding cushion geometry and primary structure design.
How does single-layer foil differ in wind?
Tension and support spacing govern single-layer behaviour — different analysis from inflated cushions but same need for site wind data.
Can ETFE be used in cyclone regions?
Engineered systems can address high wind regions when calculations and tested details meet local code — project-specific review required.
What happens during a wind event if power fails?
Inflation redundancy and backup power are often specified for cushion roofs — defined in project design.
Should façades use the same wind cases as roofs?
Façade orientation and terrain exposure may differ — each elevation needs appropriate pressure cases.
What maintenance follows high-wind seasons?
Inspect clamps, cables, punctures and pressure logs after significant storms before returning to normal operation.
How do I request wind engineering input?
Share location, height and geometry via contact-us.html for wind case coordination.
